SHD-GC Type 5kV Three-Conductor Round Portable Power Cable with Premium TPU Jacket and Ground Check Conductor
Ultimate Heavy Equipment Solution: Maximum Performance, Safety, and Longevity
Industry Standards and Ultimate Specification Certification
- ICEA S-75-381 / NEMA WC 58: Comprehensive industry standards for premium portable mining power cables incorporating advanced jacketing materials, ground check conductor monitoring systems, and high-voltage service through 8kV voltage classification
- ASTM B 172: Specification for rope-lay-stranded copper conductors with ultra-high strand counts (up to 1221 strands) providing exceptional flexibility essential for large-diameter cable reel drums on draglines and electric shovels
- ASTM B 33: Standard specification for tinned copper wire preventing corrosion through decades of outdoor exposure in surface mining, marine dredging, and extreme climate heavy equipment applications
- CAN/CSA C22.2 No. 96: Canadian certification for portable power cables deployed in extreme-duty mining and industrial environments requiring premium mechanical durability, chemical resistance, and high-voltage electrical service with enhanced safety monitoring
Synergistic Performance: How 5kV + TPU + Ground Check Work Together
The ultimate premium specification delivers performance advantages exceeding simple additive benefits of individual component features through synergistic interactions between high-voltage architecture, premium materials properties, and safety monitoring capabilities. Understanding these synergies enables comprehensive appreciation of total value proposition justifying premium material investment for critical heavy equipment applications.
5kV Voltage + Conductor Shield → Enhanced Mechanical Protection: The semiconducting conductor shield layer essential for 5kV voltage stress control contributes mechanical reinforcement filling interstices between conductor strands, creating more uniform cable cross-section resisting crushing forces. This mechanical enhancement proves particularly beneficial for trailing cable applications where cables experience compression from equipment positioning or material spillage.
TPU Jacket + 5kV Insulation → Optimized Thermal Performance: The enhanced EPR insulation thickness required for 5kV voltage service (2.8-3.0mm versus 1.8-2.4mm in 2kV cables) provides increased thermal mass benefiting ampacity. Combined with TPU jacket flexibility enabling smaller bending radius and consequently smaller reel drums, the cable delivers higher ampacity per unit reel volume compared to equivalent-ampacity lower-voltage cables with conventional jacketing.
Ground Check + 5kV Safety Margin → Dual-Layer Protection: The 5kV voltage rating provides substantial safety margin when operating equipment at lower voltages (many applications use 4160V or 6600V distribution) while the ground check monitoring continuously verifies equipment grounding integrity. This dual-layer protection—voltage margin plus active ground monitoring—delivers safety standards exceeding conventional passive grounding systems lacking continuous supervision.
TPU Flexibility + High Strand Count → Superior Cable Handling: The combination of premium TPU jacket flexibility across extreme temperatures with ultra-high strand count conductors (up to 1221 strands) delivers cable handling characteristics superior to conventional cables. This proves critical during installation on large dragline trailing cable reels where cable stiffness complicates winding procedures and increases mechanical stress during cable flexing cycles over decades of operational service.

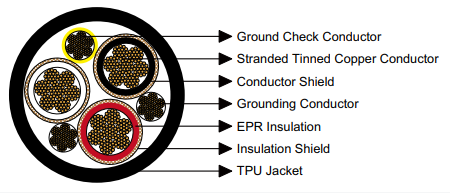

Ultimate Construction Engineering: Premium Materials Throughout
Ultra-High Strand Count Conductors
Power conductors with strand counts from 133 through 1221 strands provide exceptional flexibility essential for large-diameter trailing cable reel applications on draglines and electric shovels. Comprehensive tin plating on every individual wire strand prevents corrosion through decades of outdoor surface mining exposure or marine environment service on dredging equipment. High strand counts enable cable flexibility matching or exceeding lower-ampacity cables.
Semiconducting Conductor Shield Layer
Carbon-black-filled polymer conductor shield applied directly over stranded conductors eliminates air voids enabling partial discharge inception at 5kV voltage levels. Provides uniform electric field distribution across insulation system preventing localized voltage stress concentrations. Contributes mechanical reinforcement filling conductor interstices creating more uniform cable cross-section. Essential for long-term reliability in high-voltage service.
Premium High-Voltage EPR Insulation
Ethylene Propylene Rubber insulation with enhanced wall thickness (2.8-3.0mm) engineered specifically for 5kV voltage service. Premium EPR formulation delivers superior dielectric strength, excellent tracking resistance, maintained flexibility from -40°C through +90°C operation, comprehensive ozone and weather resistance for decades of outdoor exposure, and increased thermal mass beneficial for ampacity optimization in demanding applications.
Tinned Copper Insulation Shield
Individual metallic shields constructed from tinned copper wire braided with high-tenacity textile fibers encircle each insulated power conductor. Provides electrostatic screening critical at 5kV voltage levels, enables partial discharge detection monitoring for predictive maintenance programs, contributes multiple supplementary grounding pathways enhancing fault current protection, and delivers mechanical reinforcement protecting insulation against abrasion and impact damage in heavy equipment service.
Yellow Polypropylene Ground Check Conductor
Dedicated ground check conductor with yellow polypropylene thermoplastic insulation sized 8 AWG for smaller cables and 6 AWG for larger configurations. Polypropylene provides exceptional moisture resistance for marine dredging applications, superior chemical resistance to hydraulic fluids and lubricants, sustained visual identification through decades of service, and excellent flexibility maintained across extreme temperature ranges. Yellow color coding ensures immediate recognition during high-voltage cable termination procedures.
Premium Equipment Grounding Conductor
Bare tinned copper grounding conductor sized from 10 AWG through 4/0 AWG proportional to power conductor capacity. Provides primary equipment grounding pathway ensuring personnel protection through rapid fault current return during ground fault conditions at 5kV voltage levels where shock hazards prove more severe. Sized according to ICEA standards for fault current handling capacity on ultimate heavy equipment applications requiring maximum safety margins.
Ultimate TPU Outer Jacket
Premium thermoplastic polyurethane jacket engineered for extreme-duty heavy mobile equipment service. Delivers exceptional abrasion resistance 3-5× superior to CPE in standardized testing, outstanding flexibility maintained from -40°C arctic conditions through +90°C continuous operation, comprehensive oil and hydrocarbon resistance preventing degradation from hydraulic fluid exposure, superior tear propagation resistance preventing catastrophic failures from localized damage, excellent hydrolysis resistance enabling decades of service in wet marine dredging environments, and sustained ultraviolet stability for outdoor surface mining applications spanning equipment operational life.
Ultimate Premium Jacketing: Why TPU Represents the Best Choice for 5kV Service
While alternative jacketing materials including CSP, PCP, and NBR offer specialized benefits for specific applications, thermoplastic polyurethane represents the optimal jacketing material for ultimate premium 5kV heavy equipment cables where multiple performance attributes must simultaneously excel. TPU uniquely combines extreme abrasion resistance with low-temperature flexibility, oil resistance with hydrolysis immunity, tear strength with lightweight properties, and ultraviolet stability with sustained performance across equipment operational lifetimes spanning decades.
The 5-10% weight reduction delivered by TPU compared to equivalent CPE jacketed cables proves particularly beneficial for large-capacity cables approaching 15 tons per kilometer installed weight. For dragline trailing cables spanning 500+ meters, this weight reduction translates to multiple tons of cable mass reduction easing installation procedures, reducing trailing reel motor horsepower requirements, and decreasing structural loading on reel assemblies. The superior flexibility of TPU enables meeting minimum bending radius requirements on smaller-diameter reel drums potentially reducing overall reel assembly dimensions and weight, compounding weight-reduction benefits throughout equipment electrical infrastructure.
For mining operations prioritizing total cost of ownership optimization and operational excellence, TPU jacketing on 5kV cables with ground check monitoring represents the ultimate specification where premium material investment delivers measurable economic returns through extended service life, reduced maintenance requirements, decreased unplanned equipment downtime, and improved personnel safety margins critical for regulatory compliance and corporate social responsibility programs increasingly emphasized in global mining operations.
Ultimate Performance Specifications
Complete Ultimate Premium Specifications
| Cable Size (Cores × AWG/kcmil) | Conductor Strands | Equipment Ground (AWG/kcmil) | Ground Check (AWG/kcmil) | Insulation (inch / mm) | TPU Jacket (inch / mm) | Overall Diameter (inch / mm) | Cable Weight (lbs/kft / kg/km) | Ampacity (Amperes) |
|---|---|---|---|---|---|---|---|---|
| 3 × 6 AWG | 133 | 10 AWG | 8 AWG (Yellow PP) | 0.110 / 2.8 | 0.185 / 4.7 | 1.56 / 39.6 | 1342 / 1997 | 93 |
| 3 × 4 AWG | 259 | 8 AWG | 8 AWG (Yellow PP) | 0.110 / 2.8 | 0.185 / 4.7 | 1.68 / 42.7 | 1629 / 2424 | 122 |
| 3 × 2 AWG | 259 | 6 AWG | 8 AWG (Yellow PP) | 0.110 / 2.8 | 0.205 / 5.2 | 1.87 / 47.5 | 2228 / 3315 | 159 |
| 3 × 1 AWG | 259 | 5 AWG | 8 AWG (Yellow PP) | 0.110 / 2.8 | 0.205 / 5.2 | 1.95 / 49.5 | 2447 / 3641 | 184 |
| 3 × 1/0 AWG | 266 | 4 AWG | 8 AWG (Yellow PP) | 0.110 / 2.8 | 0.220 / 5.6 | 2.08 / 52.8 | 2760 / 4106 | 211 |
| 3 × 2/0 AWG | 323 | 3 AWG | 8 AWG (Yellow PP) | 0.110 / 2.8 | 0.220 / 5.6 | 2.20 / 55.9 | 3238 / 4818 | 243 |
| 3 × 3/0 AWG | 418 | 2 AWG | 8 AWG (Yellow PP) | 0.110 / 2.8 | 0.235 / 6.0 | 2.36 / 59.9 | 3792 / 5642 | 279 |
| 3 × 4/0 AWG | 532 | 1 AWG | 8 AWG (Yellow PP) | 0.110 / 2.8 | 0.235 / 6.0 | 2.50 / 63.5 | 4548 / 6767 | 321 |
| 3 × 250 kcmil | 627 | 1/0 AWG | 6 AWG (Yellow PP) | 0.120 / 3.0 | 0.250 / 6.4 | 2.69 / 68.3 | 5427 / 8074 | 355 |
| 3 × 350 kcmil | 888 | 2/0 AWG | 6 AWG (Yellow PP) | 0.120 / 3.0 | 0.265 / 6.7 | 2.95 / 74.9 | 7070 / 10519 | 435 |
| 3 × 500 kcmil | 1221 | 4/0 AWG | 6 AWG (Yellow PP) | 0.120 / 3.0 | 0.280 / 7.1 | 3.31 / 84.1 | 9407 / 13996 | 536 |
Ultimate Performance Notes: Premium TPU jacket delivers 5-10% weight reduction versus CPE-jacketed equivalent cables despite identical conductor and insulation specifications, facilitating cable handling and reducing trailing reel structural requirements. Current-carrying capacity ratings based on 90°C conductor temperature with 40°C ambient per ICEA S-75-381. The enhanced insulation thickness for 5kV service combined with TPU thermal properties enables optimized ampacity performance. Service life expectation 20-25+ years documented in field installations represents 2× improvement over conventional CPE jacketed cables in identical applications, delivering compelling lifecycle cost advantages justifying premium material investment.
Ultimate Application Engineering: When Premium Specifications Prove Essential
Equipment-Specific Justification for Ultimate Premium Specifications
The ultimate premium specification proves economically justified for heavy mobile equipment where operational criticality, installation complexity, and replacement costs create compelling business cases for maximum-specification cables. Not all applications warrant premium material investment—understanding when ultimate specifications deliver measurable value versus when standard specifications prove adequate enables informed engineering decisions optimizing total cost of ownership across equipment portfolios.
Walking Draglines
Ultimate Specification Essential
- Equipment investment: $50-100+ million capital cost per dragline
- Production capacity: Processing 10,000-20,000+ tons per shift at continuous operation
- Downtime cost: $100,000-$200,000 per day in lost production and continued fixed costs
- Cable replacement: Multi-day outage requiring specialized rigging equipment and personnel
- Trailing cable length: 500-700+ meters managing multi-ton cable mass
- Operational environment: Severe abrasion from sharp overburden rock, temperature extremes, decades of outdoor UV exposure
- Ultimate spec justification: Extended 20-25 year service life eliminates 1-2 cable replacement events over equipment life, each costing $500,000-$1,000,000 in downtime and replacement costs
- ROI timeline: Premium cable investment recovered in 2-4 years through avoided downtime alone
Large Electric Shovels
Premium Specification Recommended
- Equipment capacity: 60-100 cubic yard dipper capacity processing 5,000+ tons per hour
- Operational schedule: 24-hour continuous operation across multi-year campaigns
- Production criticality: Primary excavation equipment with limited backup capacity
- Cable stress: Severe mechanical abuse from sharp rock contact, equipment track proximity, material spillage
- Trailing cable length: 300-500 meters typical requiring large cable reel assemblies
- Ultimate spec justification: Extended service life, reduced maintenance intervals, enhanced safety margins for personnel working around high-capacity equipment
- ROI consideration: Premium investment justified for primary production equipment operating continuous schedules where unplanned failures trigger substantial economic losses
Marine Dredging Equipment
Premium Specification Critical
- Operating environment: Continuous water immersion, saltwater exposure, marine organism growth, wave action mechanical stress
- Maintenance accessibility: Offshore installations complicate cable replacement requiring specialized marine equipment and weather windows
- Hydrolysis resistance: TPU jacket immunity to water degradation essential for cables continuously submerged or splash zone exposed
- Project economics: Harbor deepening and land reclamation contracts with tight schedules and penalty clauses for delays
- Ultimate spec justification: Hydrolysis resistance and extended service life prove essential where cable failures trigger expensive mobilization/demobilization cycles and schedule penalties
- Critical requirement: TPU jacket represents superior choice versus CPE or other materials susceptible to hydrolytic degradation in marine service
Strategic Investment Decision Framework: When to Specify Ultimate Premium
Mining operations and equipment owners face strategic decisions balancing premium cable specifications against standard alternatives across equipment fleets. Systematic decision frameworks enable informed choices optimizing total cost of ownership while avoiding unnecessary premium specifications where standard cables prove adequate. Key decision criteria include equipment operational criticality, replacement complexity and cost, environmental severity, operational schedule intensity, and corporate operational philosophy regarding equipment reliability versus cost optimization.
Equipment Operational Criticality: Primary production equipment including draglines, large electric shovels, and critical dredges warrant ultimate specifications where unplanned failures directly impact production schedules. Auxiliary equipment and backup units prove acceptable candidates for standard specifications where failures trigger minimal production disruption and replacement procedures prove straightforward.
Replacement Complexity Assessment: Equipment requiring multi-day cable replacement outages, specialized rigging equipment, extensive safety procedures, or rare weather windows (offshore marine equipment) justify premium specifications through avoided replacement frequency. Equipment enabling rapid cable replacement through modular connections or accessible cable reel systems may prove acceptable candidates for standard specifications with planned replacement schedules.
Environmental Severity Evaluation: Operating environments with extreme abrasion (sharp silica-rich rock), aggressive chemicals (acid mine drainage), temperature extremes (arctic or desert), continuous water immersion (marine dredging), or severe mechanical abuse justify premium TPU specifications. Moderate environments with controlled conditions may prove acceptable for standard CPE specifications delivering adequate performance at lower material costs.
Operational Philosophy Alignment: Organizations prioritizing operational excellence, zero unplanned downtime targets, and long-term asset value optimization gravitate toward ultimate premium specifications as strategic investments. Organizations emphasizing short-term cost minimization and accepting higher failure rates as acceptable operational risks may select standard specifications accepting lifecycle trade-offs favoring lower initial costs over extended service life and operational reliability.
Throughout thirty-two years specializing in lifecycle engineering and total cost of ownership optimization for heavy mobile mining equipment, I have developed equipment reliability programs, conducted comparative cable performance studies, and implemented premium specification standards delivering measurable economic benefits through extended service life and reduced operational disruptions. My professional focus encompasses lifecycle cost analysis for mining equipment electrical systems, premium cable specification development and field validation, reliability-centered maintenance program implementation, and strategic investment decision frameworks for capital-intensive mining operations.
My career includes fifteen years as Corporate Reliability Engineering Manager for International Diversified Mining responsible for equipment reliability programs across twenty-three operating mines on five continents with combined equipment capital value exceeding $8 billion, eleven years with Heavy Equipment Lifecycle Systems as Principal Engineer conducting comparative performance studies evaluating premium versus standard cable specifications across identical equipment and operating conditions, and four years with Mining Equipment Investment Analysis conducting total cost of ownership research for equipment procurement decisions balancing initial capital investment against lifecycle operational costs.
This technical analysis reflects practical knowledge accumulated through direct involvement implementing premium 5kV TPU cable specifications on dragline fleets, conducting multi-year field studies documenting extended service life and reduced failure rates compared to standard specifications, performing detailed lifecycle cost analysis quantifying economic benefits of premium materials investment through avoided equipment downtime and reduced replacement frequency, and developing strategic decision frameworks enabling mining operations to systematically evaluate premium specifications against standard alternatives across diverse equipment portfolios and operational contexts.
My field experience includes tracking cable performance across dragline fleets operating in Wyoming coal mining (temperature extremes -35°C to +45°C), Chilean copper mining (aggressive UV radiation and abrasive conditions), Australian iron ore operations (severe mechanical cable abuse), and Canadian arctic diamond mining (-40°C operational requirements). This diverse operational exposure across climates, mining methods, and equipment types provides comprehensive understanding of conditions justifying ultimate premium specifications versus applications where standard cables deliver adequate performance at lower lifecycle costs. My MBA education focusing on capital investment analysis and operational finance complements technical engineering background enabling integrated technical-economic evaluation of premium specification decisions.
