Type W Four-Conductor Round Mobile Mining Power Cable 2kV
Advanced Round Construction for Mobile Equipment | Reinforced CPE Jacket Technology | Four-Wire Power Distribution
Professional four-conductor round cable engineering specifically designed for mobile mining equipment applications including continuous miners, drilling systems, cutters, and loading machines. Features reinforced CPE jacket construction with balanced round geometry optimized for four-wire power distribution where separate grounding conductors are not required or desired.
⛏️ Mobile Mining Equipment Applications & Operational Systems
Continuous Mining Machines
Specifically engineered for continuous miners operating in underground coal and metal mining operations. Round construction provides uniform stress distribution during constant machine movement while four-conductor configuration supports three-phase power plus neutral for sophisticated mining automation systems.
Mobile Mining Drills
Optimized for mobile drilling equipment including jumbo drills, long-hole drills, and exploration drilling rigs. Round cable geometry facilitates routing through drill mast cable guides while reinforced CPE jacket withstands continuous flexing during drilling operations.
Mining Cutting Equipment
Designed for mobile cutting machines, roadheaders, and excavation equipment requiring reliable four-wire power distribution. Round construction enables smooth cable management through cutting machine articulation points and boom assemblies.
Mobile Loading Machines
Perfect for load-haul-dump (LHD) machines, scooptrams, and material handling equipment. Four-conductor round design provides three-phase motor power plus control circuit neutral while round geometry resists damage from loading bucket operations.
AC Shuttle Car Systems
Ideal for AC-powered shuttle cars requiring four-wire power distribution for advanced motor control systems. Round construction facilitates cable reeling operations while reinforced jacket provides superior protection against mining debris and impact.
Mobile Support Equipment
Excellent for mobile ventilation fans, pumping systems, and auxiliary mining equipment requiring four-conductor power distribution. Round design enables efficient routing through mine infrastructure while maintaining electrical balance.
📊 Mobile Mining Cable Standards & Four-Conductor Certification Matrix
ICEA S-75-381
Insulated Cable Engineers Association standard for four-conductor round portable power cables used in mobile mining equipment with specific requirements for reinforced jacket construction
NEMA WC 58
National Electrical Manufacturers Association specification for four-conductor portable mining cables with round construction and mobile equipment durability requirements
ASTM B 172
American Society for Testing Materials standard for rope-lay-stranded tinned copper conductors in four-conductor round mining cable assemblies
ASTM B 33
Specifications for tinned copper wire conductors with enhanced corrosion resistance for mobile mining equipment applications
CAN/CSA C22.2 No. 96
Canadian Standards Association certification for four-conductor portable mining cables with enhanced safety requirements for mobile mining operations
🔩 Precision Four-Conductor Round Cable Engineering Architecture
Advanced Round Four-Wire Construction System

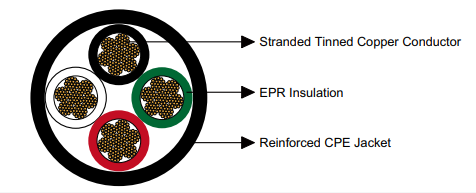

Conductor Assembly: Four stranded annealed tinned copper conductors in balanced round configuration
Insulation Technology: Individual Ethylene Propylene Rubber (EPR) insulation for each conductor with optimized dielectric properties
Protective System: Reinforced heavy-duty/extra-heavy-duty Chlorinated Polyethylene (CPE) jacket in mining black
Round Benefits: Uniform stress distribution, standard connector compatibility, balanced electrical characteristics
🌍 International Four-Conductor Round Mining Cable Classifications
🇺🇸 United States (MSHA/NEC)
Designation: Type W Round Four-Conductor Mining
Standard: 30 CFR Part 75 / NEC 400.12
Application: Mobile mining equipment power cables
🇨🇦 Canada (CSA)
Designation: Type MSHA Four-Conductor Round
Standard: CSA C22.2 No. 96
Classification: Mobile mining equipment cable
🇪🇺 European Union (CENELEC)
Designation: H07RN-F4 Round Four-Core Mining
Standard: EN 50525-2-21
Application: Mobile mining equipment power
🇦🇺 Australia (Standards Australia)
Designation: Mining Round Four-Core V-90
Standard: AS/NZS 1802
Category: Mobile underground mining cable
🇨🇳 China (National Standards)
Designation: MY-4 Mining Round Four-Core
Standard: MT 818.14
Application: Mobile coal mining equipment
🇿🇦 South Africa (SANS)
Designation: SANS 1507-4R Round Mining
Standard: SANS 10142-1
Usage: Mobile deep mining operations
📏 Complete Four-Conductor Round Technical Specifications & Performance Data
| AWG/kcmil Size | Conductor Strands | Insulation Thickness | Jacket Thickness | Overall Diameter | Weight per Length | Mobile Ampacity |
|---|---|---|---|---|---|---|
| 4×8 | 133 | 0.060″ (1.5mm) | 0.125″ (3.2mm) | 0.99″ (25.2mm) | 670 lbs/kft (997 kg/km) | 54 A |
| 4×6 | 133 | 0.060″ (1.5mm) | 0.140″ (3.6mm) | 1.10″ (27.9mm) | 838 lbs/kft (1247 kg/km) | 72 A |
| 4×4 | 259 | 0.060″ (1.5mm) | 0.155″ (3.9mm) | 1.27″ (32.3mm) | 1174 lbs/kft (1747 kg/km) | 93 A |
| 4×3 | 259 | 0.060″ (1.5mm) | 0.155″ (3.9mm) | 1.34″ (34.0mm) | 1377 lbs/kft (2049 kg/km) | 106 A |
| 4×2 | 259 | 0.060″ (1.5mm) | 0.170″ (4.3mm) | 1.48″ (37.6mm) | 1701 lbs/kft (2531 kg/km) | 122 A |
| 4×1 | 259 | 0.080″ (2.0mm) | 0.190″ (4.8mm) | 1.68″ (42.7mm) | 2192 lbs/kft (3262 kg/km) | 143 A |
| 4×1/0 | 266 | 0.080″ (2.0mm) | 0.190″ (4.8mm) | 1.79″ (45.5mm) | 2549 lbs/kft (3793 kg/km) | 165 A |
| 4×2/0 | 342 | 0.080″ (2.0mm) | 0.190″ (4.8mm) | 1.93″ (49.0mm) | 3078 lbs/kft (4581 kg/km) | 192 A |
| 4×3/0 | 418 | 0.080″ (2.0mm) | 0.205″ (5.2mm) | 2.07″ (52.6mm) | 3685 lbs/kft (5485 kg/km) | 221 A |
| 4×4/0 | 532 | 0.080″ (2.0mm) | 0.220″ (5.6mm) | 2.26″ (57.4mm) | 4540 lbs/kft (6758 kg/km) | 255 A |
| 4×250 | 627 | 0.095″ (2.4mm) | 0.235″ (6.0mm) | 2.66″ (67.6mm) | 5746 lbs/kft (8553 kg/km) | 280 A |
| 4×350 | 888 | 0.095″ (2.4mm) | 0.250″ (6.4mm) | 2.98″ (75.7mm) | 7574 lbs/kft (11275 kg/km) | 335 A |
| 4×500 | 1221 | 0.095″ (2.4mm) | 0.280″ (7.1mm) | 3.40″ (86.4mm) | 10376 lbs/kft (15441 kg/km) | 395 A |
Mobile equipment ampacity ratings calculated for conductor temperature of 90°C and ambient air temperature of 40°C per ICEA S-75-381 standards with four-conductor mutual heating and mobile duty cycle considerations
⚡ Mobile Mining Power Categories & Round Construction Performance Analysis
Light Mobile Series (8 AWG – 4 AWG)
Current Range: 54A – 93A per conductor
Optimal Applications: Small mobile drilling rigs, auxiliary equipment, control systems
Round Benefits: Compact design for tight mobile equipment compartments
Mobility Advantage: Lightweight construction for frequent relocation
Medium Mobile Series (3 AWG – 1/0 AWG)
Current Range: 106A – 165A per conductor
Optimal Applications: Standard continuous miners, medium cutting equipment, loading machines
Round Benefits: Enhanced durability with reinforced jacket construction
Mobility Advantage: Balanced flexibility and mechanical protection
Heavy Mobile Series (2/0 AWG – 4/0 AWG)
Current Range: 192A – 255A per conductor
Optimal Applications: Large continuous miners, heavy cutting equipment, main mobile power feeds
Round Benefits: Superior mechanical protection for heavy-duty mobile operations
Mobility Advantage: Reinforced construction for demanding mobile environments
Ultra Heavy-Duty Series (250 kcmil – 500 kcmil)
Current Range: 280A – 395A per conductor
Optimal Applications: Ultra-large mining equipment, main distribution, high-power mobile systems
Round Benefits: Extra-heavy-duty jacket standard for extreme mobile mining conditions
Mobility Advantage: Maximum power capacity in mobile four-conductor configuration
🔬 Four-Conductor Mobile Mining Performance & Environmental Characteristics
Thermal Performance Systems
Maximum Operating Temperature: +90°C continuous per conductor
Environmental Range: -40°C to +40°C mining ambient conditions
Mobile Duty Derating: Optimized for continuous mobile equipment operation
Mechanical Durability Specifications
Minimum Bend Radius: 6 × Overall Cable Diameter
Flexural Endurance: >2,500,000 cycles for mobile equipment applications
Tensile Strength: >2000 lbs axial pull resistance for mobile operations
Mining Environment Protection
Chemical Resistance: Excellent protection against mining chemicals and hydraulic fluids
Reinforced CPE Jacket: Superior abrasion and impact resistance for mobile equipment
Moisture Protection: IPX8 water immersion resistance for wet mining conditions
Electrical Performance Standards
Voltage Rating: 2000V AC line-to-line, 1200V line-to-ground
Insulation Resistance: >4000 MΩ-km at 20°C per conductor
Dielectric Test Voltage: 12,000V AC withstand for mobile mining safety
🛠️ Advanced Engineering & Four-Conductor Round Cable Customization
Feichun Mining Solutions provides specialized customization services for mobile mining equipment four-conductor applications:
- Enhanced Jacket Materials: CSP (Chlorosulfonated Polyethylene), PCP (Polychloroprene), NBR (Nitrile Butadiene Rubber), PVC compounds for specific mobile mining environments
- Dual-Layer Jacket Systems: Reinforcing fiber interlayer for maximum protection in extreme mobile mining conditions
- Custom Round Configurations: Modified conductor arrangements optimized for specific mobile equipment electrical requirements
- Extended Manufacturing Lengths: Continuous production up to 20,000 feet for large mobile mining operations without splice points
- Mobile Equipment Testing: Specialized flex testing, vibration resistance, impact testing, mobile duty cycle verification
- Color-Coded Identification: Custom conductor insulation colors for mobile equipment phase identification and maintenance systems
- Reinforced Termination Zones: Enhanced jacket thickness at connection points for mobile equipment connectors
