Type W Five-Conductor Round Advanced Mining Automation Cable 2kV
Sophisticated Five-Wire Round Architecture | Advanced Control Systems | Mining Automation Integration
Precision-engineered five-conductor round cable specifically designed for advanced mining automation applications requiring sophisticated electrical control. Features reinforced CPE jacket technology with balanced round geometry optimized for complex five-wire power and control distribution in continuous miners, intelligent drilling systems, automated cutters, and next-generation mining equipment where separate grounding conductors are not required.
🤖 Advanced Mining Automation Applications & Intelligent Systems
Intelligent Continuous Mining Systems
Engineered for next-generation continuous miners with advanced automation, sensor integration, and predictive maintenance systems. Five-conductor configuration supports three-phase power plus dedicated neutral and control circuits for sophisticated mining automation and real-time equipment monitoring.
Automated Drilling & Navigation
Optimized for automated drilling systems with GPS guidance, real-time geological monitoring, and precision control systems. Five-conductor round design enables simultaneous power distribution and control signal transmission for advanced drilling automation and data acquisition systems.
Variable Frequency Drive Applications
Designed specifically for VFD-controlled mining equipment requiring separate power and control conductors. Five-conductor configuration provides three-phase power, neutral, and dedicated VFD control/feedback circuits for precise motor speed control and energy efficiency optimization.
Smart Cutting & Excavation Equipment
Perfect for intelligent cutting machines with automated positioning, load sensing, and adaptive cutting control. Round construction facilitates routing through complex machinery while five conductors support power distribution plus dedicated circuits for advanced control systems and sensor networks.
Automated Loading & Transport Systems
Ideal for autonomous loading equipment, robotic material handling, and automated transport systems. Five-conductor design enables power distribution plus dedicated circuits for navigation systems, collision avoidance, and automated loading control algorithms.
Mining IoT & Communication Integration
Excellent for mining equipment requiring integrated communication systems, remote monitoring, and IoT connectivity. Five-conductor configuration supports power distribution plus dedicated circuits for data transmission, wireless communication modules, and advanced telemetry systems.
📊 Advanced Mining Standards & Five-Conductor Certification Framework
ICEA S-75-381
Insulated Cable Engineers Association standard for five-conductor round portable power cables used in advanced mining automation with specific requirements for multi-conductor electrical balance and control circuit isolation
NEMA WC 58
National Electrical Manufacturers Association specification for five-conductor portable mining cables with round construction and advanced automation system compatibility requirements
ASTM B 172
American Society for Testing Materials standard for rope-lay-stranded tinned copper conductors in five-conductor round mining automation cable assemblies
ASTM B 33
Specifications for tinned copper wire conductors with superior electrical properties for five-conductor advanced mining automation applications
CAN/CSA C22.2 No. 96
Canadian Standards Association certification for five-conductor portable mining cables with enhanced requirements for advanced automation and control system applications
🔧 Sophisticated Five-Conductor Round Cable Engineering Architecture
Advanced Five-Wire Round Configuration System

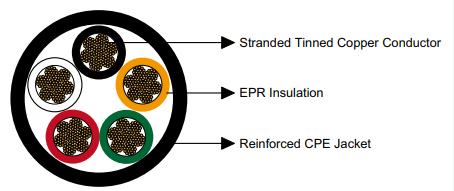

Conductor Matrix: Five stranded annealed tinned copper conductors in precision-balanced round arrangement
Insulation Technology: Individual Ethylene Propylene Rubber (EPR) insulation for each conductor with advanced dielectric stability
Protection System: Reinforced heavy-duty/extra-heavy-duty Chlorinated Polyethylene (CPE) jacket engineered for automation applications
Automation Benefits: Optimized conductor spacing for electromagnetic compatibility and control signal integrity
🌍 International Five-Conductor Advanced Mining Cable Classifications
🇺🇸 United States (MSHA/NEC)
Designation: Type W Round Five-Conductor Automation
Standard: 30 CFR Part 75 / NEC 400.12
Application: Advanced mining automation systems
🇨🇦 Canada (CSA)
Designation: Type MSHA Five-Conductor Advanced
Standard: CSA C22.2 No. 96
Classification: Mining automation equipment cable
🇪🇺 European Union (CENELEC)
Designation: H07RN-F5 Round Five-Core Auto
Standard: EN 50525-2-21
Application: Mining automation power systems
🇦🇺 Australia (Standards Australia)
Designation: Mining Round Five-Core Auto V-90
Standard: AS/NZS 1802
Category: Advanced underground mining automation
🇨🇳 China (National Standards)
Designation: MY-5A Mining Automation Round
Standard: MT 818.14
Application: Intelligent coal mining equipment
🇯🇵 Japan (JIS)
Designation: JIS Mining Auto Five-Core
Standard: JIS C 3327
Usage: Automated mining system integration
📏 Complete Five-Conductor Advanced Technical Specifications & Automation Performance Data
| AWG/kcmil Size | Conductor Strands | Insulation Thickness | Jacket Thickness | Overall Diameter | Weight per Length | Automation Ampacity |
|---|---|---|---|---|---|---|
| 5×8 | 133 | 0.060″ (1.5mm) | 0.140″ (3.6mm) | 1.07″ (27.2mm) | 776 lbs/kft (1154 kg/km) | 50 A |
| 5×6 | 133 | 0.060″ (1.5mm) | 0.155″ (3.9mm) | 1.24″ (31.5mm) | 1024 lbs/kft (1524 kg/km) | 68 A |
| 5×4 | 259 | 0.060″ (1.5mm) | 0.155″ (3.9mm) | 1.36″ (35.2mm) | 1432 lbs/kft (2131 kg/km) | 88 A |
| 5×2 | 259 | 0.060″ (1.5mm) | 0.170″ (4.3mm) | 1.56″ (39.8mm) | 2051 lbs/kft (3052 kg/km) | 116 A |
| 5×1 | 259 | 0.060″ (1.5mm) | 0.190″ (4.8mm) | 1.85″ (47.1mm) | 2665 lbs/kft (3967 kg/km) | 136 A |
| 5×1/0 | 266 | 0.080″ (2.0mm) | 0.205″ (5.2mm) | 1.98″ (50.4mm) | 3406 lbs/kft (5069 kg/km) | 150 A |
| 5×2/0 | 342 | 0.080″ (2.0mm) | 0.205″ (5.2mm) | 2.13″ (54.1mm) | 3596 lbs/kft (5351 kg/km) | 172 A |
| 5×3/0 | 418 | 0.080″ (2.0mm) | 0.220″ (5.6mm) | 2.27″ (57.6mm) | 4728 lbs/kft (7035 kg/km) | 200 A |
| 5×4/0 | 532 | 0.080″ (2.0mm) | 0.220″ (5.6mm) | 2.46″ (62.6mm) | 5512 lbs/kft (8203 kg/km) | 230 A |
Advanced automation ampacity ratings calculated for conductor temperature of 90°C and ambient air temperature of 40°C per ICEA S-75-381 standards with five-conductor mutual heating effects and automation system electromagnetic compatibility requirements
⚡ Advanced Mining Automation Power Categories & Five-Conductor Performance Analysis
Light Automation Series (8 AWG – 4 AWG)
Current Range: 50A – 88A per conductor
Optimal Applications: Small automated drilling equipment, sensor networks, IoT mining systems
Automation Benefits: Optimized for low-power control systems and intelligent sensors
Five-Conductor Advantage: Dedicated circuits for power, control, communication, and monitoring
Medium Automation Series (2 AWG – 1 AWG)
Current Range: 116A – 136A per conductor
Optimal Applications: VFD-controlled equipment, automated continuous miners, smart cutting systems
Automation Benefits: Enhanced control precision with separate power and control conductors
Five-Conductor Advantage: Three-phase power + neutral + dedicated VFD control circuit
Heavy Automation Series (1/0 AWG – 2/0 AWG)
Current Range: 150A – 172A per conductor
Optimal Applications: Large automated mining equipment, intelligent loading systems, advanced control networks
Automation Benefits: Superior electromagnetic compatibility for complex automation systems
Five-Conductor Advantage: Power distribution + dedicated automation and communication circuits
Ultra Advanced Series (3/0 AWG – 4/0 AWG)
Current Range: 200A – 230A per conductor
Optimal Applications: Central mining automation systems, main distribution with integrated control, advanced mining IoT hubs
Automation Benefits: Maximum power capacity with sophisticated control system integration
Five-Conductor Advantage: Complete power and automation infrastructure in single cable
🔬 Five-Conductor Advanced Mining Performance & Automation Characteristics
Advanced Thermal Management
Maximum Operating Temperature: +90°C continuous per conductor
Automation Environment Range: -40°C to +40°C with control system stability
Five-Conductor Derating: Optimized thermal design for complex multi-conductor applications
Precision Mechanical Specifications
Minimum Bend Radius: 6 × Overall Cable Diameter for automation equipment
Advanced Flexural Life: >3,000,000 cycles for sophisticated automation applications
Tensile Strength: >2500 lbs axial pull resistance for automated mining operations
Automation Environment Protection
Electromagnetic Compatibility: Optimized conductor spacing for control signal integrity
Chemical Resistance: Enhanced protection against automation system fluids and cleaners
Vibration Resistance: Reinforced construction for automated equipment vibration environments
Advanced Electrical Performance
Voltage Rating: 2000V AC line-to-line, 1200V line-to-ground
Control Circuit Isolation: >5000 MΩ-km between power and control conductors
Automation Dielectric Test: 15,000V AC withstand for advanced mining automation safety
🛠️ Advanced Engineering & Five-Conductor Automation Cable Customization
Feichun Advanced Mining provides specialized customization services for sophisticated five-conductor mining automation applications:
- Conductor Configuration Optimization: Custom conductor arrangements optimized for specific automation system requirements including power/control separation and EMI reduction
- Advanced Jacket Materials: CSP (Chlorosulfonated Polyethylene), PCP (Polychloroprene), NBR (Nitrile Butadiene Rubber) compounds engineered for automation environments
- EMI Shielding Options: Foil or braided shielding for sensitive automation and control circuits to prevent electromagnetic interference
- Automation-Specific Testing: Specialized testing for automation applications including EMC compliance, signal integrity verification, automation system compatibility
- Color-Coded Automation Systems: Custom conductor color schemes for automation system identification including power, control, communication, and monitoring circuits
- Extended Length Capabilities: Continuous manufacturing up to 25,000 feet for large-scale mining automation installations
- Integrated Fiber Optic Options: Hybrid cable construction incorporating fiber optic strands for high-speed data communication in advanced automation systems
