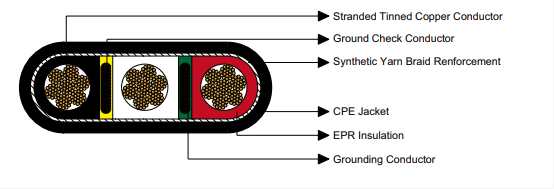

The yellow insulated ground check conductor provides continuous monitoring of ground circuit integrity, enabling real-time detection of ground path degradation or failure. This safety system allows AC mining equipment to immediately shut down when ground integrity is compromised, preventing potential electrocution hazards. The yellow color coding ensures easy identification during installation and maintenance, while the dedicated conductor provides redundant ground path verification essential for AC equipment safety where ground fault currents can be particularly dangerous to personnel.

Flat construction provides significant safety benefits including reduced trip hazard profile for personnel movement, improved heat dissipation preventing overheating conditions, enhanced flexibility for routing around obstacles, and minimized cable damage from crushing or pinching. The flat profile allows better surface contact with the ground, reducing movement and wear. Additionally, the flat construction facilitates easier inspection of the ground check conductor and provides more predictable cable behavior during AC equipment operation, essential for maintaining safety system integrity.

Critical installation requirements include maintaining proper yellow conductor identification throughout the installation, ensuring ground check conductor connections are secure and corrosion-resistant, verifying continuity testing before energization, and implementing proper strain relief to prevent conductor damage. The ground check system requires dedicated monitoring circuits that must be properly connected to ground fault relay systems. Installation must maintain 6× overall diameter bending radius, provide adequate support every 2-3 meters, and ensure the yellow ground check conductor is properly isolated from power conductors while maintaining electrical continuity for monitoring functions.

Ground check conductor sizing follows optimized safety requirements: 8 AWG for smaller applications (6-4 AWG power conductors), scaling to 6 AWG for medium applications (3-1 AWG), and 5 AWG for larger equipment (1/0-4/0 AWG). The sizing ensures adequate current carrying capacity for ground fault conditions while maintaining sensitivity for ground check monitoring circuits. AC shuttle cars typically use 8 AWG ground check conductors, while larger cutting machines and loading equipment utilize 6-5 AWG ground check conductors. Selection must consider monitoring circuit sensitivity, ground fault current levels, and equipment protection coordination requirements.

Maintenance procedures include daily visual inspection of cable condition and yellow conductor identification, weekly continuity testing of ground check circuits, monthly insulation resistance testing, and quarterly comprehensive ground system testing. Ground check conductor connections must be inspected for corrosion, looseness, or damage. The yellow insulation must be checked for cuts, abrasion, or discoloration that could compromise identification. Monitoring circuit functionality should be verified through test procedures that simulate ground fault conditions. Documentation of all test results is essential for regulatory compliance and safety system reliability verification.

Environmental conditions significantly impact ground check conductor performance, requiring careful consideration of moisture, chemicals, temperature variations, and mechanical stress. High humidity can affect insulation resistance measurements and ground check sensitivity. Chemical exposure from mining operations can degrade yellow conductor insulation and compromise identification. Temperature cycling can cause expansion/contraction stress on conductor connections. Underground conditions require enhanced protection against water ingress that could create false ground fault indications. The flat construction helps minimize environmental impact by reducing cable profile and improving drainage, while the CPE jacket provides superior chemical resistance for ground check system integrity.
