(N)SSHOEU 0.6/1kV Heavy Duty Flexible Cables
Multi-Environment Heavy Duty Mobile Equipment Solutions
The (N)SSHOEU 0.6/1kV Heavy Duty Flexible Cable series represents versatile engineering excellence in mobile equipment connectivity, specifically designed for operation across diverse industrial environments including explosion hazard areas. These robust cable systems deliver exceptional mechanical resilience while maintaining operational reliability in dry and damp conditions, outdoor installations, and hazardous area applications spanning mining operations, quarry sites, and construction environments.
- Mobile mining equipment in underground and surface operations
- Quarry machinery including excavators, crushers, and conveyor systems
- Construction site equipment requiring high mechanical load resistance
- Explosion hazard area installations with ATEX/IECEx certification requirements
- Outdoor mobile equipment exposed to weather extremes and UV radiation
- Damp environment applications including wash plants and wet processing facilities
- Heavy industrial machinery requiring continuous flexibility and durability
Dry Areas: Optimized for indoor industrial applications with controlled environmental conditions.
Damp Areas: Enhanced moisture resistance for wet processing and wash plant applications.
Outdoor Applications: UV-resistant outer sheath with weather protection capabilities.
Explosion Hazard Areas: Designed for potential ATEX/IECEx certification in gas and dust environments.
International Mobile Equipment Cable Standards & Regional Compliance
VDE 0250 Part 812
EN 50525 Multi-Environment
Category 2G/2D Applications
Zone 1/21 Certification
NEC Article 400 Compliance
Portable Power Cable
Flexible Cable Standard
CCC Certification
Advanced Construction Engineering & VDE 0250 Part 812 Compliance
Engineered in accordance with VDE 0250 Part 812 specifications, these cables incorporate simplified yet robust construction optimized for maximum reliability across diverse operating environments. The design emphasizes mechanical durability while maintaining electrical performance standards essential for mobile equipment applications in challenging industrial conditions.

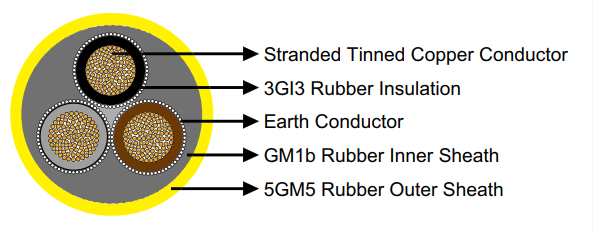

Robust Multi-Environment Construction
Class 5 Flexible Copper Conductors
High-flexibility stranded copper conductors manufactured to DIN VDE 0295 Class 5 specifications ensure maximum mechanical resilience and conductivity. The fine stranding construction provides superior flexibility for mobile equipment applications while maintaining low electrical resistance and excellent current-carrying capacity across the operating temperature range.
3GI3 Rubber Insulation System
Premium-grade 3GI3 rubber insulation provides exceptional electrical properties and mechanical durability across diverse environmental conditions. This insulation system offers superior resistance to moisture, chemicals, and temperature extremes while maintaining dielectric integrity in both dry and damp operating environments.
Optional Tinned Copper Pilot Cores
Available tinned copper pilot cores with EPR insulation enable control signal transmission and equipment monitoring capabilities. These optional cores provide enhanced corrosion resistance through tinning while delivering reliable low-voltage signal integrity essential for modern mobile equipment control systems.
Spiral Tinned Copper Earth Conductor
Integrated spiral arrangement of tinned copper earth conductors ensures comprehensive electrical safety and grounding continuity. The spiral configuration provides flexibility while maintaining low impedance grounding essential for explosion hazard area applications and personnel safety in mobile equipment operations.
GM1b Rubber Inner Sheath
High-performance GM1b rubber inner sheath delivers comprehensive protection against environmental contamination, chemical exposure, and mechanical stress. This intermediate protection layer ensures core integrity while providing additional moisture barrier properties essential for damp environment applications.
5GM5 Multi-Environment Outer Sheath
Advanced 5GM5 rubber outer sheath engineered for maximum environmental resistance including UV protection, ozone resistance, oil resistance, and flame retardancy. This outer protection system ensures cable integrity across diverse operating conditions from underground mining to outdoor construction applications.
Comprehensive Technical Specifications & Configuration Matrix
The following specifications represent standard and enhanced configurations optimized for specific mobile equipment applications. Dual conductor configurations provide power and control capabilities in compact cable designs suitable for space-constrained installations.
Standard Dual Conductor Configuration Specifications
| Configuration | Power/Control Cores | Earth Conductor | Min. Overall Diameter | Max. Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|
| 3×2.5+3×2.5/3E | 2.5 mm² Power + 2.5 mm² Control | 3× Earth Conductor | 14.0 mm | 17.0 mm | 300 kg/km |
| 3×6+3×6/3E | 6 mm² Power + 6 mm² Control | 3× Earth Conductor | 18.0 mm | 21.0 mm | 580 kg/km |
| 3×10+3×10/3E | 10 mm² Power + 10 mm² Control | 3× Earth Conductor | 21.0 mm | 25.0 mm | 860 kg/km |
Enhanced Configuration with Pilot Cores Specifications
| Enhanced Configuration | Power/Control/Pilot Cores | Earth Conductor | Min. Overall Diameter | Max. Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|
| 3×2.5+3×2.5/3E+3×1.5 | 2.5 mm² Power + 2.5 mm² Control + 1.5 mm² Pilot | 3× Earth Conductor | 17.0 mm | 20.0 mm | 450 kg/km |
| 3×6+3×6/3E+3×1.5 | 6 mm² Power + 6 mm² Control + 1.5 mm² Pilot | 3× Earth Conductor | 18.0 mm | 22.0 mm | 660 kg/km |
| 3×10+3×10/3E+3×2.5 | 10 mm² Power + 10 mm² Control + 2.5 mm² Pilot | 3× Earth Conductor | 21.0 mm | 26.0 mm | 950 kg/km |
| 3×25+3×16/3E+3×2.5 | 25 mm² Power + 16 mm² Control + 2.5 mm² Pilot | 3× Earth Conductor | 28.0 mm | 33.0 mm | 1,660 kg/km |
| 3×35+3×16/3E+3×2.5 | 35 mm² Power + 16 mm² Control + 2.5 mm² Pilot | 3× Earth Conductor | 30.0 mm | 35.0 mm | 1,970 kg/km |
| 3×50+3×25/3E+3×2.5 | 50 mm² Power + 25 mm² Control + 2.5 mm² Pilot | 3× Earth Conductor | 36.0 mm | 41.0 mm | 2,840 kg/km |
| 3×70+3×35/3E+3×2.5 | 70 mm² Power + 35 mm² Control + 2.5 mm² Pilot | 3× Earth Conductor | 41.0 mm | 46.0 mm | 3,700 kg/km |
| 3×95+3×50/3E+3×2.5 | 95 mm² Power + 50 mm² Control + 2.5 mm² Pilot | 3× Earth Conductor | 47.0 mm | 52.0 mm | 4,950 kg/km |
| 3×120+3×70/3E+3×2.5 | 120 mm² Power + 70 mm² Control + 2.5 mm² Pilot | 3× Earth Conductor | 52.0 mm | 57.0 mm | 5,650 kg/km |
| 3×150+3×70/3E+3×2.5 | 150 mm² Power + 70 mm² Control + 2.5 mm² Pilot | 3× Earth Conductor | 58.0 mm | 63.0 mm | 6,520 kg/km |
Critical Performance Parameters
Voltage AC
5 Minutes
Range Specification
Bend Radius
Protection Rating
Classification
Application Analysis & Configuration Selection Guide
Optimal cable selection depends on specific mobile equipment requirements, environmental conditions, and regulatory compliance needs. The dual conductor design provides integrated power and control capabilities while maintaining compact installation profiles.
Application-Specific Configuration Analysis
| Configuration Type | Optimal Environment | Primary Applications | Key Advantages | Recommended Equipment |
|---|---|---|---|---|
| Small Core (2.5-10mm²) | Light mobile equipment | Portable tools, small machinery | Lightweight, highly flexible, cost-effective | Hand tools, small pumps, portable equipment |
| Medium Core (25-50mm²) | Standard mobile equipment | Construction machinery, mobile generators | Balanced performance and flexibility | Excavators, compressors, mobile lighting |
| Large Core (70-150mm²) | Heavy mobile equipment | Mining equipment, large quarry machinery | Maximum current capacity, robust construction | Large excavators, crushers, conveyor drives |
| With Pilot Cores | Automated equipment | Controlled machinery requiring monitoring | Integrated control and monitoring capabilities | Automated systems, remote-controlled equipment |
| Without Pilot Cores | Simple power applications | Basic mobile equipment power supply | Simplified installation, reduced cost | Basic motors, simple machinery |
