NSSHCGEOEU 0.6/1kV Low Tensile Stress Coal Cutter Cables

Advanced Flexibility Engineering for Extreme Bending Applications

Anhui Feichun Special Cable Co., Ltd. | Flexible Cable Solutions for Coal Mining Since 1995

Flexibility-Optimized Coal Mining Cable Solutions

The NSSHCGEOEU 0.6/1kV Low Tensile Stress series exemplifies advanced engineering in ultra-flexible coal mining cable technology, meticulously designed for applications demanding exceptional bending performance while operating under controlled tensile loads. These innovative cable systems feature revolutionary spiral armour construction and enhanced monitoring capabilities, specifically engineered for coal cutting machinery requiring continuous flexing without mechanical stress concentration.

Specialized Flexibility Applications:Coal cutting machines requiring extreme bending radius capabilities
Mobile mining equipment with continuous flexing requirements
Underground coal extraction systems with tight space constraints
Automated coal cutting apparatus with repetitive motion cycles
Coal transportation systems with dynamic cable movement
Precision coal extraction equipment requiring controlled cable routing

Low Tensile Stress vs. High Tensile Stress Comparison:
Low Tensile: Optimized for extreme bending flexibility, reduced weight, enhanced spiral construction for applications with controlled mechanical loads.
High Tensile: Designed for maximum mechanical strength, heavy-duty applications, braided armour construction for extreme tensile loads.

International Coal Mining Cable Standards & Regional Designations

Germany (DIN VDE) NSSHCGEOEU 0.6/1kV
DIN VDE 0250 Part 812

European Coal Standards H07RN8-F Flexible Grade
EN 50525 Low Tensile

International (IEC) IEC 60245-8 Flexible Type
Coal Cutting Specification

United States (MSHA) Type G-GC Mining Cable
Flexible Configuration

Australia (AS/NZS) AS/NZS 1125 Flexible Coal
Type FCM-LT

China (GB/MT) GB/T 12972 Flexible Mining
MT 818 Low Tensile

United Kingdom BS 6746 Mining Flexible
Coal Authority Approved

India (BIS) IS 694 Coal Mining Cable
Flexible Type Specification

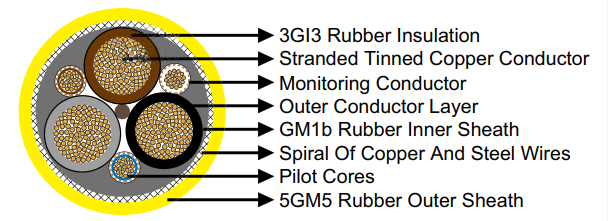

Advanced Spiral Construction & DIN VDE 0250 Part 812 Engineering

Manufactured in strict compliance with DIN VDE 0250 Part 812 specifications, these cables incorporate breakthrough spiral armour technology and integrated monitoring systems designed specifically for low tensile stress applications requiring maximum flexibility performance in coal mining environments.

Revolutionary Construction Architecture

Flexible Stranded Primary Conductors

Ultra-fine stranded tinned copper conductors engineered with maximum flexibility characteristics for continuous bending applications. Advanced stranding geometry ensures consistent electrical properties throughout extreme flexing cycles while tinning provides superior protection against coal dust corrosion and moisture infiltration.

Heat-Resistant 3GI3 EPR Insulation

Premium-grade 3GI3 Ethylene Propylene Rubber insulation system specifically formulated for low tensile stress applications. Enhanced flexibility compounds maintain electrical integrity under continuous bending while providing exceptional thermal stability for coal cutting operations generating significant heat.

Easily Strippable Conductive Layer

Innovative outer conductive layer design facilitates rapid field installation and maintenance in underground coal mining conditions. This specialized layer provides electromagnetic interference shielding while enabling efficient cable preparation in confined working spaces.

Advanced Pilot Core System

Copper strand and steel braid composite pilot cores with expansion/compression capability specifically designed for low tensile applications. EPR rubber insulation ensures reliable control signal transmission for precise coal cutting equipment positioning and operation control.

Spiral Monitoring Core Technology

Revolutionary spiral arrangement of tinned copper monitoring wires positioned above pilot cores, covered with semiconductive tape. This unique configuration provides enhanced flexibility while maintaining continuous cable health monitoring capabilities essential for predictive maintenance protocols.

GM1b Rubber Inner Sheath

High-performance GM1b rubber inner sheath provides comprehensive protection against coal particulates, chemical exposure, and moisture ingress. Optimized for flexibility applications while maintaining structural integrity under continuous bending stress.

Spiral Copper-Steel Armour System

Innovative concentric earth conductor designed as spiral arrangement of copper and steel wires with integrated fiberglass tape embedded in the outer sheath. This construction prevents sheath displacement while providing exceptional flexibility and grounding continuity.

5GM5 Flame-Retardant Outer Sheath

Advanced 5GM5 rubber outer sheath engineered for maximum abrasion resistance, tear strength, oil resistance, and flame retardancy. Multi-compound formulation optimized for extreme flexibility while providing comprehensive protection in coal mining environments.

Comprehensive Technical Specifications Matrix

The following specifications represent optimized configurations for low tensile stress applications. All models feature enhanced flexibility characteristics while maintaining electrical performance standards required for coal cutting operations.

Standard Low Tensile Configuration Specifications

Core Configuration	Power/Control Cross Section	Monitoring System	Min. Overall Diameter	Max. Overall Diameter	Nominal Weight
3×16/16KON+2ST+UEL	16 mm² Power / 16 mm² Control	2 Steel + 1 Earth Monitor	35.0 mm	38.0 mm	2,130 kg/km
3×25/16KON+2ST+UEL	25 mm² Power / 16 mm² Control	2 Steel + 1 Earth Monitor	38.0 mm	41.0 mm	2,790 kg/km
3×35/16KON+2ST+UEL	35 mm² Power / 16 mm² Control	2 Steel + 1 Earth Monitor	41.0 mm	45.0 mm	3,390 kg/km
3×50/25KON+2ST+UEL	50 mm² Power / 25 mm² Control	2 Steel + 1 Earth Monitor	47.0 mm	51.0 mm	4,340 kg/km
3×70/35KON+2ST+UEL	70 mm² Power / 35 mm² Control	2 Steel + 1 Earth Monitor	52.0 mm	56.0 mm	5,680 kg/km
3×95/50KON+2ST+UEL	95 mm² Power / 50 mm² Control	2 Steel + 1 Earth Monitor	58.0 mm	62.0 mm	7,180 kg/km

Enhanced Flexibility Configuration Specifications

Enhanced Configuration	Power/Control Cross Section	Monitoring System	Min. Overall Diameter	Max. Overall Diameter	Nominal Weight
3×25/16KON+3×(1.5ST+UEL)	25 mm² Power / 16 mm² Control	3×1.5 Steel + 3 Earth Monitor	38.0 mm	41.0 mm	2,920 kg/km
3×35/16KON+3×(1.5ST+UEL)	35 mm² Power / 16 mm² Control	3×1.5 Steel + 3 Earth Monitor	41.0 mm	45.0 mm	3,630 kg/km
3×50/25KON+3×(1.5ST+UEL)	50 mm² Power / 25 mm² Control	3×1.5 Steel + 3 Earth Monitor	45.0 mm	48.0 mm	4,500 kg/km
3×70/35KON+3×(1.5ST+UEL)	70 mm² Power / 35 mm² Control	3×1.5 Steel + 3 Earth Monitor	48.0 mm	53.0 mm	5,850 kg/km
3×95/50KON+3×(1.5ST+UEL)	95 mm² Power / 50 mm² Control	3×1.5 Steel + 3 Earth Monitor	52.0 mm	56.0 mm	7,400 kg/km
3×120/70KON+3×(1.5ST+UEL)	120 mm² Power / 70 mm² Control	3×1.5 Steel + 3 Earth Monitor	58.0 mm	63.0 mm	8,300 kg/km
3×150/70KON+3×(1.5ST+UEL)	150 mm² Power / 70 mm² Control	3×1.5 Steel + 3 Earth Monitor	62.0 mm	68.0 mm	9,300 kg/km

Critical Performance Parameters

0.6/1kV

Rated Operating
Voltage AC

3.5kV

Test Voltage
5 Minutes Duration

-40°C to +90°C

Operating Temperature
Range Specification

5×OD

Minimum Dynamic
Bend Radius

300kg/m

Maximum Tensile
Load Rating

50,000+

Flexing Cycle
Life Expectancy

Configuration Analysis & Optimal Selection Guide

Selection of appropriate NSSHCGEOEU Low Tensile Stress configuration depends on specific flexibility requirements, electrical load demands, and monitoring system sophistication needs for coal cutting applications.

Application-Specific Configuration Comparison

Configuration Type	Flexibility Rating	Optimal Application	Key Advantages	Recommended Use Cases
Standard (2ST+UEL)	High Flexibility	Basic coal cutting flexibility requirements	Lightweight, cost-effective, reliable	Standard coal cutting machines with moderate bending
Enhanced (3×1.5ST+UEL)	Ultra-High Flexibility	Extreme bending coal cutting applications	Maximum flexibility, advanced monitoring	Compact coal cutting equipment, tight radius applications
16-35mm² Power Cores	Maximum Flexibility	Light coal cutting with extreme bending	Minimum weight, maximum bendability	Automated coal cutting systems, robotic applications
50-70mm² Power Cores	High Flexibility	Medium-duty flexible coal cutting	Balanced performance and flexibility	Continuous coal cutting with moderate power
95-150mm² Power Cores	Controlled Flexibility	High-power flexible coal cutting	Maximum current capacity with flexibility	Large flexible coal cutting systems

Professional Technical FAQ for Low Tensile Stress Applications

How does spiral armour construction enhance flexibility compared to braided armour systems?

Spiral armour construction using copper and steel wires provides superior flexibility by allowing individual wire movement during bending, whereas braided armour creates a more rigid structure. The spiral arrangement distributes mechanical stress evenly across the cable diameter, preventing stress concentration points that can lead to premature failure. The integrated fiberglass tape embedded in the outer sheath prevents sheath displacement while maintaining the spiral integrity during continuous flexing operations.

What are the advantages of spiral monitoring core technology over traditional monitoring systems?

Spiral monitoring core technology positions tinned copper wires in a helical arrangement above pilot cores, providing continuous cable health monitoring while maintaining maximum flexibility. This configuration ensures monitoring wire integrity during extreme bending cycles, prevents wire breakage common in linear arrangements, and enables real-time detection of cable degradation. The semiconductive tape covering provides additional protection and electromagnetic shielding for accurate monitoring signals.

Why is low tensile stress design preferred for specific coal cutting applications?

Low tensile stress design is optimal for coal cutting applications where mechanical loads are controlled and flexibility is paramount. These applications include automated coal cutting systems, precision extraction equipment, and confined space operations where cable routing requires tight bend radii. The reduced weight and enhanced flexibility enable more efficient equipment operation while maintaining electrical performance and monitoring capabilities essential for modern coal extraction systems.

How does the copper strand and steel braid pilot core construction improve performance?

The copper strand and steel braid composite pilot core construction provides expansion and compression capability essential for low tensile stress applications. Copper strands ensure excellent electrical conductivity for control signals, while the steel braid provides mechanical integrity and flexibility. This hybrid construction maintains signal integrity during continuous bending while preventing pilot core damage that could compromise equipment control systems critical for safe coal cutting operations.

What maintenance protocols are specific to low tensile stress cable configurations?

Low tensile stress cables require specialized maintenance protocols focusing on flexibility preservation: daily visual inspection for kinking or deformation, weekly flexibility testing at maximum bend radius, monthly monitoring core continuity checks, quarterly spiral armour integrity assessment, and semi-annual comprehensive electrical testing. The enhanced monitoring systems enable condition-based maintenance scheduling, allowing predictive replacement before flexibility degradation affects coal cutting operations.

How do enhanced flexibility configurations (3×1.5ST+UEL) compare to standard configurations?

Enhanced flexibility configurations utilize 1.5mm² steel pilot cores versus standard configurations, providing superior bendability and reduced cable stiffness. The triple monitoring system (3×1.5ST+UEL) offers redundant cable health monitoring, essential for critical coal cutting operations where cable failure could result in significant downtime. These configurations are specifically designed for applications requiring minimum bend radius below 5× overall diameter while maintaining comprehensive monitoring capabilities.

What are the fiberglass tape integration benefits in spiral armour construction?

Fiberglass tape integration in spiral armour construction prevents sheath displacement during flexing operations, maintains spiral wire positioning, and provides additional mechanical protection without compromising flexibility. The tape is embedded within the outer sheath material, creating a unified protective system that prevents armour wire migration while allowing individual wire movement essential for extreme bending applications. This integration significantly extends cable life in continuous flexing coal cutting operations.

Specialized Flexibility Engineering Support

Flexible Cable Engineering
