🚛 Specialized DC Mining Equipment Applications
DC Shuttle Car Systems
Engineered specifically for battery-powered shuttle cars operating in underground coal mines. The flat profile minimizes cable drag while providing reliable power transmission through continuous start-stop cycles and directional changes.
Mining Drill Equipment
Optimized for roof bolters, continuous miners, and drilling rigs requiring flexible DC power delivery. Flat construction allows easy cable management in confined spaces while maintaining electrical integrity.
Cutting & Loading Machinery
Perfect for longwall shearers, cutting heads, and loading equipment where space constraints demand flat cable profiles. Synthetic yarn reinforcement provides superior resistance to mining debris and abrasion.
Mobile DC Power Distribution
Ideal for temporary DC power networks, battery charging stations, and portable equipment connections requiring flat cable routing through cable trays and conduits.
📊 Industry Standards & Regulatory Compliance Matrix
ICEA S-75-381
Insulated Cable Engineers Association specification for mining machine trailing cables with flat conductor arrangements
NEMA WC 58
National Electrical Manufacturers Association standards for portable power cables in mining applications
ASTM B 172
American Society for Testing Materials specification for rope-lay-stranded tinned copper conductors
ASTM B 33
Standards for tinned soft copper wire electrical conductors with superior corrosion resistance
CAN/CSA C22.2 No. 96
Canadian Standards Association requirements for portable power cables in hazardous mining environments
🏗️ Advanced Flat Parallel Cable Architecture

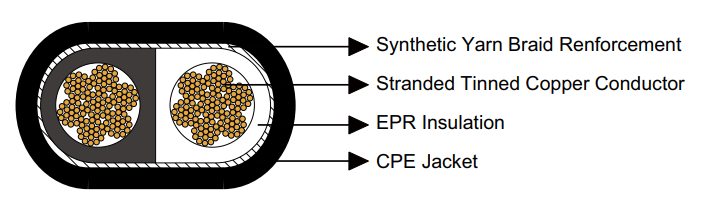

Engineered Multi-Layer Flat Configuration
Conductor Core: Dual stranded annealed tinned copper conductors in parallel arrangement
Primary Insulation: High-performance Ethylene Propylene Rubber (EPR) individual conductor wrapping
Mechanical Reinforcement: Advanced synthetic yarn braiding for enhanced tensile strength
Protective Jacket: Heavy-duty/Extra-heavy-duty Chlorinated Polyethylene (CPE) in industrial black
🌐 Global Product Classifications & Regional Code Standards
🇺🇸 United States (MSHA/NEMA)
Designation: Type W-A Flat Mining Cable
Regulation: 30 CFR Part 75
Usage: DC mining equipment trailing cables
🇨🇦 Canada (CSA/MSHA)
Designation: Type DLO Flat Configuration
Standard: CSA C22.2 No. 96
Classification: DC mining locomotive cable
🇪🇺 European Union (CENELEC)
Designation: H07RNH2-F Flat Twin Cable
Standard: EN 50363-10-2
Application: Mining mobile equipment
🇦🇺 Australia (Standards Australia)
Designation: Mining Flat Twin V-90
Standard: AS/NZS 1802
Category: Underground mining trailing cable
🇨🇳 China (National Standards)
Designation: MYP Mining Flat Cable
Standard: MT 818.14
Application: Coal mining DC equipment
🇿🇦 South Africa (SANS)
Designation: SANS 1507 Flat Mining
Standard: SANS 10142-1
Usage: Gold/platinum mining operations
📏 Complete Technical Specifications & Dimensional Analysis
| AWG/kcmil Size | Conductor Strands | Insulation Thickness | Jacket Thickness | Height × Width | Weight per Length | DC Ampacity Rating |
|---|---|---|---|---|---|---|
| 2×8 | 133 | 0.060″ (1.5mm) | 0.080″ (2.0mm) | 0.51″ × 0.84″ (13.0×21.3mm) | 340 lbs/kft (506 kg/km) | 72 A |
| 2×6 | 133 | 0.060″ (1.5mm) | 0.080″ (2.0mm) | 0.56″ × 0.93″ (14.2×23.6mm) | 440 lbs/kft (655 kg/km) | 95 A |
| 2×4 | 259 | 0.060″ (1.5mm) | 0.095″ (2.4mm) | 0.61″ × 1.05″ (15.5×26.7mm) | 550 lbs/kft (818 kg/km) | 127 A |
| 2×3 | 259 | 0.060″ (1.5mm) | 0.095″ (2.4mm) | 0.68″ × 1.14″ (17.3×29.0mm) | 675 lbs/kft (1005 kg/km) | 145 A |
| 2×2 | 259 | 0.060″ (1.5mm) | 0.095″ (2.4mm) | 0.73″ × 1.24″ (18.5×31.5mm) | 810 lbs/kft (1205 kg/km) | 167 A |
| 2×1 | 259 | 0.080″ (2.0mm) | 0.110″ (2.8mm) | 0.81″ × 1.40″ (20.6×35.6mm) | 1020 lbs/kft (1520 kg/km) | 191 A |
| 2×1/0 | 259 | 0.080″ (2.0mm) | 0.125″ (3.2mm) | 0.93″ × 1.51″ (23.6×38.2mm) | 1265 lbs/kft (1880 kg/km) | 217 A |
| 2×2/0 | 329 | 0.080″ (2.0mm) | 0.125″ (3.2mm) | 0.99″ × 1.63″ (25.1×41.4mm) | 1515 lbs/kft (2255 kg/km) | 250 A |
| 2×3/0 | 413 | 0.080″ (2.0mm) | 0.140″ (3.6mm) | 1.03″ × 1.77″ (26.2×45.0mm) | 1810 lbs/kft (2694 kg/km) | 286 A |
| 2×4/0 | 532 | 0.080″ (2.0mm) | 0.140″ (3.6mm) | 1.10″ × 1.89″ (27.9×48.0mm) | 2175 lbs/kft (3237 kg/km) | 328 A |
DC Ampacity calculations based on conductor operating temperature of 90°C and ambient air temperature of 40°C per ICEA S-75-381 mining cable standards
⚡ Performance Series Comparison & Application Matching
Light-Duty Series (8 AWG – 4 AWG)
Current Range: 72A – 127A DC
Optimal Applications: Small shuttle cars, auxiliary equipment, control circuits
Profile Benefits: Minimum height for tight spaces, maximum flexibility
Weight Advantage: Lightest construction for mobile applications
Medium-Duty Series (3 AWG – 1 AWG)
Current Range: 145A – 191A DC
Optimal Applications: Standard drilling equipment, medium-sized cutting machines
Profile Benefits: Balanced dimensions for versatile routing
Durability Focus: Enhanced jacket thickness for moderate-duty cycles
Heavy-Duty Series (1/0 AWG – 2/0 AWG)
Current Range: 217A – 250A DC
Optimal Applications: Large shuttle cars, continuous miners, main power feeds
Profile Benefits: Wider format for higher current density
Construction: Increased jacket thickness for severe environments
Extra Heavy-Duty Series (3/0 AWG – 4/0 AWG)
Current Range: 286A – 328A DC
Optimal Applications: Longwall shearers, large cutting equipment, main power distribution
Profile Benefits: Maximum current capacity in flat configuration
Construction: Extra-heavy-duty jacket mandatory for extreme conditions
🔧 Operational Parameters & Environmental Performance
Thermal Management
Continuous Operating Temperature: +90°C maximum
Environmental Range: -40°C to +40°C ambient
Overload Rating: 130% for 2 hours maximum
Mechanical Specifications
Minimum Bend Radius: 6 × Overall Height
Flexural Endurance: >500,000 cycles at rated radius
Pull Strength: >750 lbs tensile resistance
Environmental Durability
Chemical Resistance: Excellent against mining chemicals
Abrasion Resistance: Superior synthetic yarn protection
Moisture Resistance: IPX8 equivalent water resistance
Electrical Characteristics
DC Voltage Rating: 2000V DC continuous
Insulation Resistance: >2000 MΩ-km at 20°C
Dielectric Withstand: 8500V AC test voltage
🎯 Customization Options & Engineering Modifications
Feichun Industrial Cables provides comprehensive customization services to meet specific mining operation requirements:
- Alternative Jacket Compounds: CSP (Chlorosulfonated Polyethylene), PCP (Polychloroprene), NBR (Nitrile Butadiene Rubber), PVC (Polyvinyl Chloride) options available
- Dual-Layer Jacket Systems: Reinforcing fiber intermediate layer for extreme abrasion environments
- Custom Flat Geometries: Modified height-to-width ratios for specific space constraints
- Extended Length Capabilities: Continuous manufacturing up to 7500 feet for reduced splice points
- Enhanced Testing Protocols: Accelerated aging, flame propagation, mining safety compliance testing
- Color-Coded Identification: Multiple jacket colors available for circuit identification systems
