NTSCGERLWOEU 3.6/6kV Flexible Armoured Submersible Cables
Advanced Armoured Submersible Cable Technology for Permanent Underwater Operation
The NTSCGERLWOEU 3.6/6kV Flexible Armoured Submersible Cable series represents the pinnacle of underwater cable engineering, specifically designed for permanent operation in water environments requiring exceptional mechanical protection. These sophisticated cable systems integrate advanced galvanised steel wire braid armour with comprehensive waterproof construction, delivering unparalleled protection against mechanical damage, crush forces, and environmental hazards in the most demanding subsea applications.
- Permanent subsea electrical installations requiring maximum mechanical protection
- Underwater industrial equipment in high-traffic or mechanically demanding areas
- Submersible pump systems in environments with debris, rocks, or mechanical hazards
- Deep water installations requiring crush resistance and impact protection
- Marine and offshore electrical systems exposed to anchor damage or vessel traffic
- Underwater mining equipment requiring comprehensive mechanical and electrical protection
- Permanent submersible installations in industrial water treatment facilities
- Subsea power transmission systems requiring armoured protection and high voltage capability
Advanced Armoured Construction Architecture
Galvanised Steel Wire Braid Armour System
Mechanical Protection: Comprehensive protection against crush forces, impact damage, and mechanical stress
Corrosion Resistance: Galvanised steel construction provides long-term protection against underwater corrosion
Flexibility Maintenance: Braid construction maintains cable flexibility while providing maximum mechanical protection
Installation Benefits: Armoured design enables installation in challenging underwater environments with confidence in long-term mechanical integrity
Dual Conductive Layer Technology
Inner Conductive Layer: Special rubber compound provides primary conductive protection and electromagnetic shielding
Outer Conductive Layer: Easy strippable special rubber delivers secondary protection and simplified termination
Enhanced Performance: Dual layer system optimizes electrical performance while providing redundant protection
Installation Efficiency: Easy strippable design facilitates field termination while maintaining electrical integrity
Waterproof Synthetic Butyl Rubber Inner Sheath
Superior Waterproofing: Synthetic butyl rubber provides exceptional water barrier properties
Chemical Resistance: Advanced formulation resists chemical attack and environmental degradation
Pressure Resistance: Construction withstands hydrostatic pressure in deep water applications
Long-Term Reliability: Material optimized for extended underwater service life in permanent installations
Steel Wire Braid Armour: Galvanised steel wire construction provides comprehensive crush and impact protection.
Multi-Layer Defense: Integrated protection system with multiple barrier layers for maximum reliability.
Permanent Installation: Optimized for long-term underwater deployment without maintenance access.
Environmental Resistance: Complete protection against underwater hazards, debris, and mechanical stress.
Dual Conductor Layers: Inner and outer conductive layers provide redundant protection and enhanced electrical performance.
Waterproof Butyl Barrier: Synthetic butyl rubber inner sheath delivers superior water resistance vs. standard materials.
Optional Pilot Cores: Integrated control and monitoring capabilities for complex subsea systems.
Complete Integration: All protection systems work together to provide comprehensive underwater cable solution.
International Armoured Submersible Standards & Subsea Compliance
Armoured Submersible Grade
DNV GL Subsea Standards
IEC 61892 Offshore Units
NORSOK E-001 Offshore
Lloyd’s Register Type Approval
EN 50396 Armoured Cable
IEC 62067 Power Cable
CQC Marine Certification
Advanced Armoured Construction & VDE 0250 Part 813 Engineering
Manufactured in strict compliance with VDE 0250 Part 813 specifications, these cables incorporate cutting-edge armoured construction technology and advanced waterproof engineering optimized for permanent underwater operation. The comprehensive protection system integrates multiple barrier layers with galvanised steel wire braid armour to deliver uncompromising performance in the most demanding subsea environments.

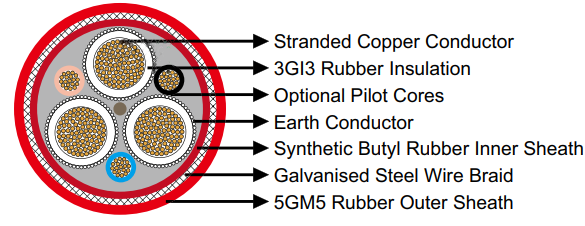

Sophisticated Armoured Construction Engineering
Class 5 Flexible Tinned Copper Conductors
Premium-grade flexible stranded tinned copper conductors manufactured to DIN VDE 0295 Class 5 specifications provide exceptional underwater performance and maximum corrosion resistance. Advanced multi-layer tinning process creates comprehensive barrier against seawater corrosion while maintaining optimal electrical conductivity essential for high voltage subsea applications operating under permanent water immersion and hydrostatic pressure conditions.
Dual Conductive Layer Protection System
Revolutionary dual conductive layer architecture featuring inner special rubber compound providing primary conductive protection and electromagnetic shielding, combined with outer special rubber easy strippable layer delivering secondary protection and simplified field termination. This advanced system optimizes electrical performance while providing redundant conductive protection essential for high voltage subsea applications.
3GI3 Rubber Insulation Technology
Advanced 3GI3 rubber insulation system delivers exceptional electrical properties and mechanical durability optimized for high voltage subsea applications. This insulation technology provides superior resistance to water absorption, thermal cycling, mechanical stress, and hydrostatic pressure while maintaining dielectric integrity essential for 3.6/6kV underwater operation in permanent installations.
Optional Pilot Core Integration
Advanced optional pilot cores featuring copper conductors with EPR insulation enable control signal transmission and monitoring capabilities for complex subsea systems. These cores provide comprehensive control and monitoring functionality within the armoured cable structure while maintaining waterproof integrity and mechanical protection essential for sophisticated underwater installations.
Spiral Earth Conductor System
Integrated spiral arrangement of tinned annealed copper earth conductors ensures comprehensive electrical safety and grounding continuity essential for high voltage subsea applications. The spiral configuration provides flexibility while maintaining low impedance grounding and electromagnetic shielding characteristics critical for safe operation in underwater environments with challenging grounding conditions.
Waterproof Synthetic Butyl Rubber Inner Sheath
Revolutionary waterproof synthetic butyl rubber inner sheath provides superior water barrier properties compared to conventional materials. This advanced formulation delivers exceptional resistance to water absorption, chemical attack, and pressure-induced permeation while maintaining flexibility characteristics essential for armoured cable installation and long-term performance in permanent subsea applications.
Galvanised Steel Wire Braid Armour
Advanced galvanised steel wire braid armour provides comprehensive mechanical protection against crush forces, impact damage, anchor strikes, and environmental hazards typical of subsea installations. The galvanisation process ensures long-term corrosion resistance while the braid construction maintains cable flexibility essential for installation and thermal cycling in underwater environments.
5GM5 Rubber Outer Sheath Protection
High-performance 5GM5 rubber outer sheath delivers comprehensive environmental protection including resistance to abrasion, tearing, chemical exposure, and biological attack. This outer protection system ensures cable integrity while providing interface compatibility with subsea termination systems and installation equipment essential for permanent underwater deployments.
Comprehensive NTSCGERLWOEU 3.6/6kV Technical Specifications
The NTSCGERLWOEU series provides high voltage armoured submersible solutions optimized for permanent underwater operation requiring maximum mechanical protection. These configurations excel in demanding subsea installations, offshore applications, and underwater systems requiring comprehensive protection against mechanical hazards while maintaining high voltage electrical performance.
NTSCGERLWOEU 3.6/6kV Armoured Configuration Specifications
| Armoured Configuration | Power + Control Cross Section | Earth Conductor Type | Min. Overall Diameter | Max. Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|
| 3×35+3×16/3E | 35 mm² Power + 16 mm² Control | 3× Spiral Earth Conductor | 55.0 mm | 60.0 mm | 4,600 kg/km |
| 3×50+3×25/3E | 50 mm² Power + 25 mm² Control | 3× Spiral Earth Conductor | 59.0 mm | 67.0 mm | 5,600 kg/km |
| 3×70+3×35/3E | 70 mm² Power + 35 mm² Control | 3× Spiral Earth Conductor | 64.0 mm | 70.0 mm | 6,700 kg/km |
| 3×95+3×50/3E | 95 mm² Power + 50 mm² Control | 3× Spiral Earth Conductor | 68.0 mm | 75.0 mm | 7,900 kg/km |
| 3×120+3×70/3E | 120 mm² Power + 70 mm² Control | 3× Spiral Earth Conductor | 75.0 mm | 80.0 mm | 9,980 kg/km |
Comprehensive Performance Characteristics
| Performance Parameter | Specification | Test Method | Compliance Standard | Application Significance |
|---|---|---|---|---|
| Rated Voltage | 3.6/6kV AC | IEC 60229 | VDE 0250 Part 813 | High voltage subsea power transmission |
| Test Voltage | 15kV for 5 minutes | IEC 60229 | VDE 0250 Part 813 | Electrical safety verification |
| Operating Temperature | -40°C to +90°C | IEC 60811 | VDE 0250 Part 813 | Extended environmental operation |
| Minimum Bend Radius | 12× Overall Diameter | IEC 60811 | VDE 0250 Part 813 | Installation flexibility with armour |
| Crush Resistance | 5000N per cm width | IEC 60811-2-1 | VDE 0250 Part 813 | Mechanical protection capability |
| Water Immersion | Permanent submersion | IEC 60811-1-3 | VDE 0250 Part 813 | Permanent underwater operation |
Critical Armoured Submersible Performance Parameters
Capability
Braid Protection
Operation
Specification
(120mm² Config)
Diameter
Armoured Submersible Cable Selection Guide & Protection Analysis
Optimal cable selection depends on mechanical protection requirements, installation environment, electrical load demands, and long-term reliability needs. The armoured construction approach enables comprehensive protection for permanent underwater installations while maintaining high voltage electrical performance and installation flexibility.
Mechanical Protection & Application Analysis
| Protection Level | Mechanical Hazards | Optimal Environment | Cable Benefits | Installation Considerations |
|---|---|---|---|---|
| Maximum Protection | Anchor strikes, vessel traffic, debris | Busy waterways, shipping channels | Steel armour, crush resistance | Requires specialized installation equipment |
| Industrial Protection | Industrial equipment, material handling | Industrial harbors, processing facilities | Comprehensive mechanical barrier | Enhanced termination requirements |
| Environmental Protection | Rock fall, geological movement | Rocky seabeds, unstable geology | Impact and abrasion resistance | Geological survey recommended |
| Long-Term Protection | Corrosion, biological attack | Permanent installations, deep water | Galvanised steel, butyl rubber | Comprehensive protection system |
| High Voltage Protection | Electrical safety, insulation integrity | Power transmission, large motors | Dual conductive layers, 6kV rating | Specialized high voltage termination |
