NTSCGECWOEU Advanced Medium Voltage Coal Cutter Cables
Revolutionary Dual System Medium Voltage Coal Cutter Cable Technology
The NTSCGECWOEU Advanced Medium Voltage Coal Cutter Cable series represents the pinnacle of underground mining automation technology, featuring revolutionary dual system architecture with optional fiber optic integration. These sophisticated cable systems combine System1 (1.8/3kV or 3.6/6kV medium voltage) with System2 (0.6/1kV low voltage) capabilities, advanced center bundle technology, and integrated fiber optic communications in a single comprehensive cable solution designed for the most advanced coal cutting machinery and automated underground mining operations.
- Automated coal cutting machines with sophisticated control and monitoring requirements
- Longwall mining systems requiring integrated power, control, and fiber optic communications
- Bretby chain applications with advanced automation and real-time data transmission
- Underground mining equipment requiring dual voltage capabilities and fiber optic networking
- Advanced coal extraction systems with integrated safety monitoring and automated controls
- Mobile mining equipment requiring comprehensive electrical and communication integration
- Sophisticated underground mining operations with centralized automation and monitoring systems
- Next-generation coal cutting technology requiring maximum electrical and communication capability
Revolutionary Dual System Architecture
System1: Medium/High Voltage Power Transmission
Voltage Options: 1.8/3kV or 3.6/6kV for maximum power transmission capability
Construction Features: Flexible stranded tinned copper conductors with heat resistant 3GI3 EPR insulation and easy strippable outer conductive layer
Power Applications: Primary power transmission for large coal cutting equipment, main drive motors, and high-power underground machinery
Technical Benefits: Enhanced electrical performance through medium voltage transmission, reduced voltage drop over long distances, and optimized power delivery for sophisticated coal cutting systems
Integration Advantage: Seamlessly integrated with System2 and center bundle for comprehensive electrical solution in single cable assembly
System2: Low Voltage Control & Auxiliary Power
Voltage Specification: 0.6/1kV for control systems and auxiliary equipment power
Construction Features: Flexible stranded tinned copper conductors with heat resistant 3GI3 EPR insulation optimized for control applications
Control Applications: Equipment control systems, auxiliary power distribution, safety systems, and monitoring equipment power supply
Technical Benefits: Dedicated low voltage capability ensures reliable control system operation independent of main power transmission
System Integration: Coordinated with System1 and center bundle to provide complete electrical infrastructure in unified cable design
Center Bundle: Advanced Control & Fiber Optic Integration
Core Technology: Copper/steel conductors capable of expansion and compression with EPR insulation
Fiber Optic Option: Optional integrated fiber optics for high-speed data transmission and real-time monitoring
Protection System: Covered with tinned copper wires and semi-conductive rubber sheath for comprehensive protection
Communication Benefits: Enables real-time data transmission, remote monitoring, automated control, and integration with mine-wide communication networks
Advanced Features: Supports Industry 4.0 mining automation, predictive maintenance systems, and centralized operational control
Integrated Solution: Single cable provides medium voltage power, low voltage control, and communication capabilities.
Installation Efficiency: Reduced cable quantity and installation complexity compared to separate cable systems.
System Reliability: Coordinated protection and performance across all electrical and communication circuits.
Future-Ready Design: Supports current operations while enabling advanced automation and Industry 4.0 mining technologies.
High-Speed Data: Real-time transmission of operational data, monitoring information, and control signals.
Electromagnetic Immunity: Fiber optic communications unaffected by electrical interference in mining environments.
Network Integration: Enables connection to mine-wide communication and automation networks.
Advanced Analytics: Supports predictive maintenance, performance optimization, and operational analytics systems.
International Advanced Mining Cable Standards & Automation Compliance
Advanced Mining Grade
IEC 61784 Industrial Networks
IEC 60793 Fiber Standards
ATEX Category 1M Mining
ISO 27001 Information Security
IEC 61850 Communication Protocol
IEC 62264 Enterprise Control
MA Mark Automation Safety
Advanced Dual System Construction & VDE 0250 Part 813 Engineering
Manufactured in strict compliance with VDE 0250 Part 813 specifications, these cables incorporate revolutionary dual system engineering with advanced center bundle technology and optional fiber optic integration. The sophisticated construction integrates multiple voltage levels, comprehensive control capabilities, and high-speed communication systems optimized for next-generation underground mining automation and coal cutting operations.

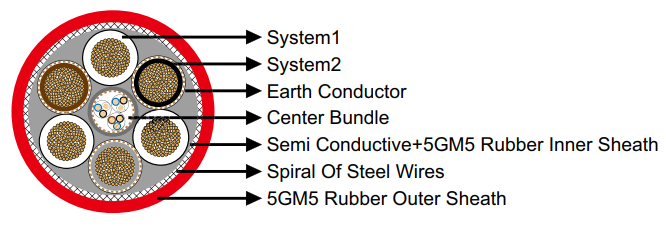

Revolutionary Advanced Construction Engineering
Dual System Conductor Architecture
Advanced dual system design featuring System1 flexible stranded tinned copper conductors optimized for medium/high voltage transmission (1.8/3kV or 3.6/6kV) with easy strippable outer conductive layer, integrated with System2 conductors designed for low voltage (0.6/1kV) control and auxiliary power applications. This revolutionary architecture enables comprehensive electrical solutions within single cable assembly while maintaining optimal performance characteristics for each voltage level.
Advanced Center Bundle Technology
Sophisticated center bundle featuring copper/steel conductors capable of expansion and compression with EPR insulation, designed for control and pilot core applications. The center bundle incorporates optional fiber optic integration for high-speed data transmission and real-time monitoring capabilities, covered with tinned copper wires and semi-conductive rubber sheath providing comprehensive electromagnetic protection and signal integrity essential for advanced mining automation systems.
Optional Fiber Optic Integration
Revolutionary optional fiber optic technology integrated within center bundle construction enables high-speed data transmission, real-time monitoring, and advanced communication capabilities. Fiber optic integration supports Industry 4.0 mining automation, predictive maintenance systems, and centralized operational control while maintaining protection against harsh underground mining environments through specialized protective construction and electromagnetic immunity.
Heat Resistant 3GI3 EPR Insulation
Advanced heat-resistant 3GI3 rubber insulation based on Ethylene Propylene Rubber (EPR) optimized for both medium voltage and control applications. This insulation technology provides superior electrical properties, thermal stability, and mechanical durability across all voltage levels while maintaining compatibility with dual system architecture and center bundle integration essential for comprehensive underground mining automation applications.
Spiral Tinned Copper Earth Conductor
Advanced spiral arrangement of tinned copper earth conductors provides comprehensive electrical safety and grounding continuity across all system components. The earth conductor system ensures reliable grounding for both medium voltage and control circuits while providing electromagnetic shielding essential for fiber optic signal integrity and advanced automation system performance in electrically noisy underground mining environments.
Advanced Dual-Layer Inner Sheath
Sophisticated 2-layer inner sheath design featuring semi-conductive rubber combined with 5GM5 rubber construction provides electrical stress control for medium voltage circuits while delivering mechanical protection and environmental resistance for all cable components. This advanced design optimizes performance across multiple voltage levels while maintaining flexibility characteristics essential for bretby chain applications and extreme bending requirements.
Embedded Spiral Steel Wire Armour
Advanced spiral steel wire armour embedded in outer sheath with integrated fiberglass tape preventing sheath exchange provides comprehensive mechanical protection while maintaining extreme bending capability essential for sophisticated coal cutting applications. The armour system protects all cable components including fiber optic elements while enabling flexibility required for automated mining equipment and bretby chain operations.
5GM5 Multi-Purpose Outer Sheath
High-performance 5GM5 rubber outer sheath engineered for maximum abrasion resistance, tear strength, oil resistance, and flame retardancy essential for advanced underground mining automation environments. This outer protection system ensures cable integrity while providing interface compatibility with sophisticated coal cutting equipment and automation systems required for reliable operation in challenging mining conditions.
Comprehensive 1.8/3kV Advanced Configuration Technical Specifications
The 1.8/3kV series provides medium voltage solutions optimized for advanced coal cutting applications requiring comprehensive electrical and communication integration. These configurations excel in automated mining systems, sophisticated control applications, and coal cutting machinery requiring dual system capability with optional fiber optic communications.
1.8/3kV Dual System Configuration Specifications
| Advanced Configuration | System1 + System2 + Center Bundle | Earth Conductor | Min. Overall Diameter | Max. Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|
| 3×50+3×(35+35/3)+2×(2×0.75ST)+2×0.75UEL | System1: 3×50mm² + System2: 3×(35+35/3) + Center Bundle: 2×(2×0.75ST) | 2×0.75UEL Earth Conductor | 62.0 mm | 66.0 mm | 7,210 kg/km |
| 3×70+3×(50+50/3)+2×(2×0.75ST)+2×0.75UEL | System1: 3×70mm² + System2: 3×(50+50/3) + Center Bundle: 2×(2×0.75ST) | 2×0.75UEL Earth Conductor | 64.0 mm | 68.0 mm | 8,200 kg/km |
| 3×95+3×(70+70/3)+2×(2×0.75ST)+2×0.75UEL | System1: 3×95mm² + System2: 3×(70+70/3) + Center Bundle: 2×(2×0.75ST) | 2×0.75UEL Earth Conductor | 74.0 mm | 78.0 mm | 10,300 kg/km |
Comprehensive 3.6/6kV High Performance Configuration Technical Specifications
The 3.6/6kV series provides high medium voltage solutions optimized for maximum power transmission with advanced automation capabilities. These configurations excel in large coal cutting machinery, sophisticated automation systems, and underground equipment requiring maximum electrical performance with comprehensive fiber optic communication integration.
3.6/6kV Enhanced Dual System Configuration Specifications
| Enhanced Configuration | System1 + System2 + Advanced Center Bundle | Earth + Optic Integration | Min. Overall Diameter | Max. Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|
| 3×35+3×(35+35/3)+2×(2×0.75ST)+2×0.75UEL | System1: 3×35mm² + System2: 3×(35+35/3) + Center Bundle: 2×(2×0.75ST) + Fiber Option | 2×0.75UEL Earth + Fiber Optic Integration | 66.0 mm | 72.0 mm | 7,600 kg/km |
| 3×50+3×(50+50/3)+2×(2×0.75ST)+2×0.75UEL | System1: 3×50mm² + System2: 3×(50+50/3) + Center Bundle: 2×(2×0.75ST) + Fiber Option | 2×0.75UEL Earth + Fiber Optic Integration | 69.0 mm | 75.0 mm | 9,200 kg/km |
| 3×70+3×(70+70/3)+2×(2×0.75ST)+2×0.75UEL | System1: 3×70mm² + System2: 3×(70+70/3) + Center Bundle: 2×(2×0.75ST) + Fiber Option | 2×0.75UEL Earth + Fiber Optic Integration | 76.0 mm | 81.0 mm | 11,150 kg/km |
| 3×95+3×(95+95/3)+2×(2×0.75ST)+2×0.75UEL | System1: 3×95mm² + System2: 3×(95+95/3) + Center Bundle: 2×(2×0.75ST) + Fiber Option | 2×0.75UEL Earth + Fiber Optic Integration | 85.0 mm | 90.0 mm | 13,300 kg/km |
Critical Advanced System Performance Parameters
System1 + System2
High-Speed Data
(6kV 95mm² Config)
Diameter
Technology
Configurations
Advanced System Selection Guide & Automation Integration Analysis
Optimal cable selection depends on automation requirements, communication needs, power transmission demands, and integration complexity. The dual system approach with optional fiber optic integration enables comprehensive solutions for next-generation underground mining automation while maintaining mechanical performance essential for bretby chain applications.
System Architecture & Application Analysis
| System Component | Technical Capability | Optimal Application | Integration Benefits | Automation Support |
|---|---|---|---|---|
| System1 (1.8/3kV) | Medium voltage power transmission | Standard coal cutting equipment, moderate automation | Efficient power transmission with integrated control | Supports automated control systems |
| System1 (3.6/6kV) | High medium voltage transmission | Large coal cutting machinery, advanced automation | Maximum power with comprehensive integration | Full Industry 4.0 automation capability |
| System2 (0.6/1kV) | Control and auxiliary power | Control systems, safety equipment, auxiliary loads | Dedicated control power independent of main transmission | Essential for automated safety and control systems |
| Center Bundle | Advanced control and monitoring | Sophisticated control, pilot signals, monitoring | Comprehensive control integration in single cable | Enables predictive maintenance and optimization |
| Fiber Optic Option | High-speed data transmission | Real-time monitoring, advanced analytics, networking | Complete communication solution integrated with power | Full digitalization and Industry 4.0 enablement |
