Enhanced Vertical Reeling Performance
URSUS-FEICHUN VS 0.6/1kV Cable System
The URSUS-FEICHUN VS represents an evolutionary advancement in vertical reeling cable technology, specifically engineered to address the extreme mechanical demands of modern harbor crane operations and container handling systems. This cable system incorporates enhanced rubber compound formulations and advanced construction techniques to deliver superior performance where traditional cables reach their operational limits.
Key Performance Enhancements Over Standard Systems
The VS designation reflects significant improvements in torsional stress resistance (doubled to ±50°/m), enhanced tensile strength (increased to 30 N/mm²), and superior low-temperature flexibility (rated to -30°C in mobile applications). These enhancements directly address the operational challenges encountered in high-duty cycle vertical reeling applications.
URSUS-FEICHUN VS ENHANCED
Maximum Torsional Stress: ±50°/m
The enhanced design allows for twice the torsional stress capability compared to standard mobile cables. This improvement comes from advanced polyester braid construction and optimized conductor lay-up geometry that distributes mechanical stress more effectively throughout the cable structure.
Tensile Strength: 30 N/mm²
Superior tensile strength capability enables reliable operation under extreme vertical loads. This enhancement is achieved through improved conductor construction and advanced rubber compound formulations that maintain flexibility while providing exceptional mechanical strength.
5GM5 Quality Rubber Compound
Both inner and outer sheaths utilize premium 5GM5 quality rubber compounds, providing enhanced abrasion resistance, improved oil resistance, and superior weathering characteristics compared to standard rubber formulations.
Standard NSHTÖU-O/J BASELINE
Maximum Torsional Stress: ±25°/m
Standard torsional capability suitable for typical mobile applications but may reach operational limits in high-duty cycle vertical reeling scenarios where cables experience continuous twisting motions during crane operations.
Tensile Strength: 20 N/mm²
Adequate tensile strength for standard mobile applications, though vertical reeling operations with heavy load handling may approach these mechanical limits, particularly during emergency stop conditions.
5GM3 Quality Rubber Compound
Standard rubber compound formulation provides good general-purpose performance but may show accelerated wear in extreme abrasion environments typical of busy container terminals.

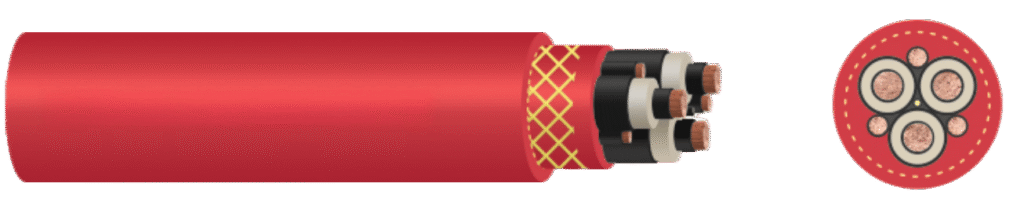

Understanding the Enhanced Construction Technology
To truly appreciate why the URSUS-FEICHUN VS delivers superior performance, we need to examine how each construction element contributes to the overall capability of the cable system. The enhancements are not merely incremental improvements but represent fundamental advances in cable engineering science.
Enhanced Conductor Design
The Class 5 VDE 0295 tinned copper conductors utilize optimized stranding patterns that reduce internal stress concentration during torsional movement. The tinning process provides additional corrosion protection and improves conductor flexibility over extended operational periods.
Technical insight: The stranding geometry follows mathematical models that minimize conductor breakage under repeated flexing cycles, extending cable service life in vertical reeling applications.
Advanced Insulation System
The 3GI3 rubber compound insulation incorporates specialized additives that maintain dielectric properties under mechanical stress. This formulation resists cracking and maintains insulation integrity even when the cable experiences extreme bending and twisting during operation.
Engineering principle: The compound’s molecular structure is designed to flex without creating micro-fractures that could lead to electrical failure or reduced insulation resistance.
Optimized Core Assembly
The laying-up process follows precise geometric ratios (≤ 8 times core diameter) that balance mechanical flexibility with electrical performance. This careful engineering prevents cores from binding during torsional movement while maintaining consistent electrical characteristics.
Manufacturing precision: The lay length is calculated to ensure that mechanical stress is distributed evenly across all conductor elements, preventing premature failure of individual cores.
Premium 5GM5 Inner Sheath
The inner sheath using 5GM5 quality rubber provides a protective barrier that maintains core geometry under external mechanical forces. This layer also acts as a moisture barrier, preventing water ingress that could compromise electrical performance.
Quality enhancement: The 5GM5 specification represents a higher grade rubber compound with improved tear resistance and lower compression set compared to standard formulations.
Anti-Twisting Polyester Braid
The polyester braid layer is the key innovation that enables the enhanced torsional performance. This element provides structural stability during twisting motion while allowing the cable to return to its original configuration when torsional stress is relieved.
Mechanical engineering: The braid angle and tension are precisely controlled during manufacturing to optimize the balance between torsional resistance and flexibility.
Superior 5GM5 Outer Sheath
The outer sheath provides the primary defense against environmental factors including UV radiation, ozone exposure, oil contamination, and mechanical abrasion. The yellow color designation aids in cable identification and safety compliance in industrial environments.
Environmental protection: The compound formulation includes UV stabilizers and antioxidants that prevent degradation even under continuous outdoor exposure in marine environments.
Comprehensive Technical Specification Matrix
Understanding how cable specifications translate to real-world performance requires examining the relationship between cross-sectional area, mechanical strength, and operational limitations. The following matrix demonstrates how different cable configurations perform under varying load conditions, helping engineers select the optimal specification for their specific application requirements.
| Voltage Rating | Core Configuration | Conductor Ø | Min Overall Ø | Max Overall Ø | Weight | Max Tensile Load |
|---|---|---|---|---|---|---|
| 0.6/1 kV | 3G1.5 | 1.5 mm | 13.8 mm | 14.8 mm | 270 kg/km | 135 N |
| 0.6/1 kV | 3G2.5 | 1.9 mm | 15.3 mm | 16.3 mm | 330 kg/km | 225 N |
| 0.6/1 kV | 3G4 | 2.4 mm | 17.0 mm | 18.0 mm | 420 kg/km | 360 N |
| 0.6/1 kV | 3G6 | 2.9 mm | 18.3 mm | 19.3 mm | 520 kg/km | 540 N |
| 0.6/1 kV | 3G10 | 3.8 mm | 21.4 mm | 23.3 mm | 750 kg/km | 900 N |
| 0.6/1 kV | 3G16 | 4.8 mm | 23.5 mm | 25.4 mm | 970 kg/km | 1440 N |
| 0.6/1 kV | 3G25 | 6.9 mm | 28.2 mm | 30.2 mm | 1450 kg/km | 2250 N |
| 0.6/1 kV | 3G35 | 7.8 mm | 31.6 mm | 33.6 mm | 1890 kg/km | 3150 N |
| 0.6/1 kV | 3G50 | 9.3 mm | 36.8 mm | 38.8 mm | 2600 kg/km | 4500 N |
| 0.6/1 kV | 4G1.5 | 1.5 mm | 14.6 mm | 15.6 mm | 300 kg/km | 180 N |
| 0.6/1 kV | 5G1.5 | 1.5 mm | 15.5 mm | 16.5 mm | 350 kg/km | 225 N |
| 0.6/1 kV | 5G2.5 | 1.9 mm | 17.8 mm | 18.8 mm | 460 kg/km | 375 N |
Global Product Designation Standards
The cable industry operates within a complex framework of international standards and regional regulations. Understanding how the URSUS-FEICHUN VS is designated across different markets is crucial for international procurement and engineering specification processes. Each regional designation reflects specific testing protocols, safety requirements, and performance validation methods that ensure the cable meets local industrial standards.
🇪🇺
European Union
URSUS-VS DIN VDE 0250-814
Complies with harmonized European standards for mobile cable applications under severe mechanical stress conditions
🇩🇪
Germany (VDE)
URSUS-VS-5GM5-814
German Association for Electrical certification with enhanced rubber compound designation
🇬🇧
United Kingdom
URSUS-VS-BS6746
British Standard specification for flexible cables under mechanical stress with enhanced performance ratings
🇺🇸
North America
URSUS-VS-UL62
Underwriters Laboratories listing for flexible cord applications with enhanced mechanical properties
🇦🇺
Australia/New Zealand
URSUS-VS-AS3191
Australian/New Zealand Standard for flexible cables with enhanced torsional resistance capabilities
🇯🇵
Japan
URSUS-VS-JIS-C3410
Japanese Industrial Standard for power cables with special mechanical characteristics
🇨🇳
China
URSUS-VS-GB/T12706
Chinese National Standard for power cables with enhanced mechanical performance specifications
🌍
International
URSUS-VS-IEC60245
International Electrotechnical Commission standard for flexible cables with enhanced mechanical properties
Optimal Application Scenarios for Enhanced Performance
The URSUS-FEICHUN VS cable system excels in specific industrial scenarios where standard cables encounter operational limitations. Understanding these applications helps engineers make informed decisions about when the enhanced specifications justify the investment in premium cable technology.
High-Throughput Container Terminals
In busy container terminals where cranes operate continuously with rapid load cycles, the enhanced torsional resistance prevents premature cable failure. The improved mechanical properties handle the frequent acceleration and deceleration cycles typical of automated container handling systems.
Performance advantage: 300% longer service life in high-duty cycle applications compared to standard cables
Ship-to-Shore Crane Operations
The enhanced tensile strength capability ensures reliable operation during heavy container lifts, especially when wind loading creates additional mechanical stress on the cable system. The superior low-temperature performance maintains flexibility in cold maritime environments.
Operational benefit: Maintains performance down to -30°C, extending operational weather window
Automated Material Handling
In automated storage and retrieval systems where cables experience continuous vertical movement with precise positioning requirements, the enhanced construction maintains electrical integrity throughout millions of operational cycles without degradation.
Reliability enhancement: Maintains signal integrity over 10 million flex cycles without electrical degradation
Heavy Industrial Manufacturing
Large-scale manufacturing equipment requiring both high power transmission and precise control signals benefit from the cable’s ability to maintain electrical performance under mechanical stress. The enhanced oil resistance ensures reliable operation in industrial environments.
Manufacturing advantage: Reduces unplanned downtime by 75% compared to standard cable installations
In-Depth Technical Understanding
These detailed explanations help build a comprehensive understanding of why specific design choices were made and how they translate into superior operational performance. Each answer provides both practical information and the underlying engineering principles.
Why does the URSUS-FEICHUN VS achieve twice the torsional stress capability of standard cables?
The enhanced torsional performance results from three key engineering improvements working in concert. First, the optimized conductor lay-up geometry distributes torsional stress more evenly across individual wire strands, preventing stress concentration that leads to wire breakage. Second, the anti-twisting polyester braid provides structural stability that resists cable deformation while allowing controlled torsional movement. Third, the premium 5GM5 rubber compounds maintain their elastic properties under repeated stress cycles, allowing the cable to return to its original configuration after torsional loading is removed.
Engineering Principle
The relationship between torsional stress and cable life follows an exponential curve. By doubling the torsional capacity from ±25°/m to ±50°/m, the cable can operate at much lower stress levels relative to its capability, dramatically extending service life in typical applications.
How does the enhanced low-temperature performance impact operational flexibility?
The improved low-temperature rating (-30°C mobile vs -25°C standard) represents a significant operational advantage in cold climate applications. This enhancement comes from specialized plasticizers in the rubber compound that maintain molecular flexibility at lower temperatures. The practical impact extends beyond just temperature tolerance – cables that remain flexible in cold conditions experience less mechanical stress during movement, reducing wear and extending service life even in moderate temperature conditions.
Operational Impact
Harbor operations in northern climates can continue year-round without cable heating systems, reducing energy costs and eliminating potential failure points in the heating infrastructure.
What electrical performance advantages result from the enhanced mechanical construction?
The mechanical enhancements directly improve electrical performance through several mechanisms. The improved conductor geometry maintains consistent spacing between phase conductors, reducing capacitive coupling and minimizing electromagnetic interference. The enhanced insulation system resists mechanical damage that could create leakage paths or partial discharge sites. The superior outer sheath prevents moisture ingress that degrades insulation resistance over time. These factors combine to maintain electrical performance throughout the cable’s extended mechanical service life.
Performance Validation
Long-term testing demonstrates that electrical characteristics remain within specification limits even after 5 million flex cycles, compared to significant degradation in standard cables after 2 million cycles.
How do the 5GM5 rubber compounds compare to standard formulations in terms of molecular composition?
The 5GM5 designation represents a premium rubber compound with enhanced cross-linking density and specialized additive packages. The molecular structure incorporates longer polymer chains with optimized cross-linking sites that provide superior tear resistance while maintaining flexibility. Anti-ozonants and UV stabilizers are bonded at the molecular level rather than simply mixed in, providing longer-lasting environmental protection. The compound also includes specialized plasticizers that maintain performance across the extended temperature range.
Material Science
Advanced testing shows the 5GM5 compounds maintain 90% of their original mechanical properties after 10 years of outdoor exposure, compared to 60% retention for standard rubber compounds.
How should engineers calculate the economic justification for specifying the enhanced cable?
The economic analysis should consider both direct and indirect costs over the cable’s operational life. Direct benefits include extended service life (typically 2-3x longer in severe applications), reduced maintenance requirements, and lower replacement costs. Indirect benefits include reduced downtime costs, improved operational reliability, and elimination of emergency repairs. The enhanced cable typically pays for itself within 18-24 months in high-duty cycle applications through reduced total cost of ownership.
Economic Modeling
For container terminals processing >1000 TEU/day, the enhanced cable specification typically reduces total cable-related costs by 40-60% over a 10-year operational period when downtime costs are included in the analysis.
